(88.100.35[094]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE, STOP, VALVE

Запчасти Case CX210D LC LR (88.100.35[094]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE, STOP, VALVE (88) - ACCESSORIES

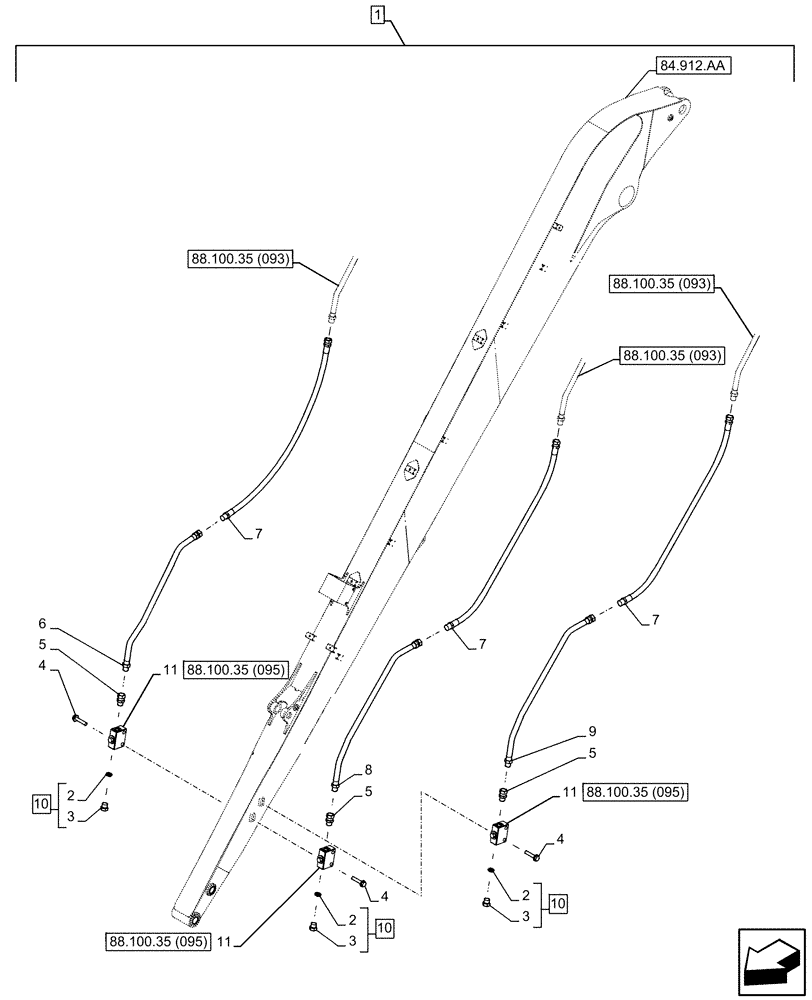

Схема запчастей Case CX210D LC LR - (88.100.35[094]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE, STOP, VALVE (88) - ACCESSORIES
11
6
2
88.100.35 (095)
4
7
7
4
88.100.35 (095)
88.100.35 (093)
88.100.35 (093)
88.100.35 (095)
88.100.35 (093)
5
9
8
7
84.912.aa
3
11
5
10
10
2
3
10
5
3
4
2
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP387-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150539A1

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60mm

6шт.

5

KHJ1939

FITTING

3шт.

6

KRV43830

PIPE

RH

1шт.

7

KRV43980

HYDRAULIC HOSE

12mm ID x 1000mm

3шт.

8

KRV43820

PIPE

LH, Front

1шт.

9

KRV43840

PIPE

LH, Rear

1шт.

10

159085A1

PLUG

ASSY, G1/2", Incl 2, 3

3шт.

11

KHV10440

VALVE

ASSY

3шт.
