Запчасти Case CX210D LC LR (88.100.35[082]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

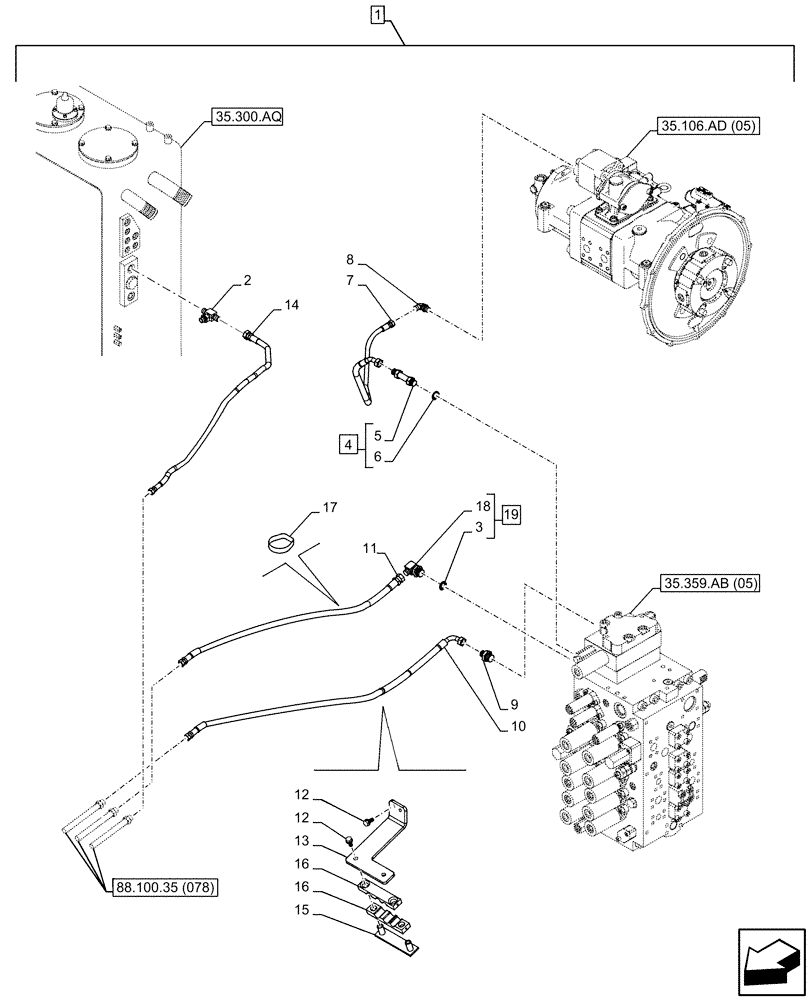

Схема запчастей Case CX210D LC LR - (88.100.35[082]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
11
14
12
15
19
35.359.ab (05)
7
9
17
16
10
13
88.100.35 (078)
1
18
6
12
35.300.aq
35.106.ad (05)
4
16
5
2
3
8

Артикул

Название

Примечание

Количество

1

KG2RP387-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1300

TEE

1шт.

3

154503A1

O-RING

1шт.

4

KAJ2432

ADAPTER

ASSY, G1/2" x G1/2", Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

154487A1

O-RING

1шт.

7

KBJ24900

HYDRAULIC HOSE

12mm ID x 1200mm

1шт.

8

KHJ28600

ELBOW

G1/2" x G1/2"

1шт.

9

168988A1

ADAPTER

G1/2" x G3/4"

1шт.

10

KBJ12440

HYDRAULIC HOSE

12mm ID x 1560mm

1шт.

11

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

12mm ID x 1430mm

1шт.

12

166052A1

BOLT

M10 x 25mm

4шт.

13

KBJ19730

BRACKET

1шт.

14

KRJ24570

HYDRAULIC HOSE

12mm ID x 1650mm

1шт.

15

KRJ11590

SUPPORT

1шт.

16

KRJ11580

HOSE CLIP

2шт.

17

150496A1

MOUNTING CLIP

250mm

4шт.

18

NSS

NOT SOLD SEPARAT

Elbow, Incl in 19

1шт.

19

157936A1

ELBOW

ASSY, 90°, G3/4" x G1/2", Incl 3, 18

1шт.

Выбрано товаров: 20
