(88.100.35[075]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, STOP, VALVE, LINE

Запчасти Case CX210D LC LR (88.100.35[075]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, STOP, VALVE, LINE (88) - ACCESSORIES

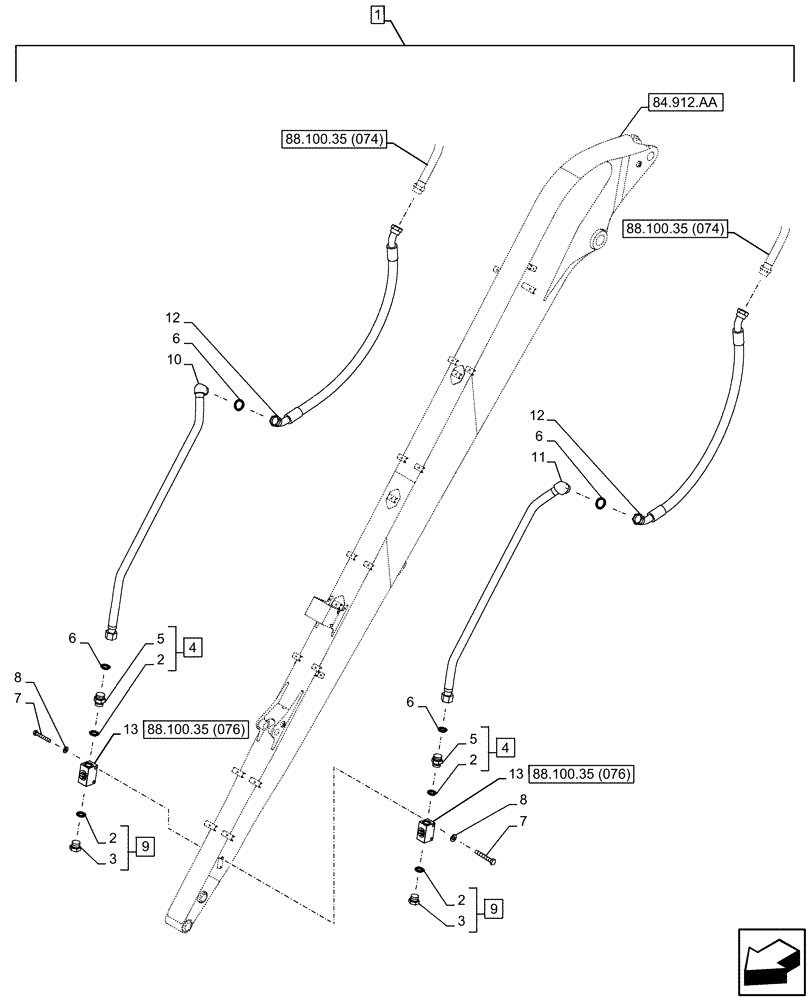

Схема запчастей Case CX210D LC LR - (88.100.35[075]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, STOP, VALVE, LINE (88) - ACCESSORIES
2
4
13
88.100.35 (076)
3
3
12
1
6
88.100.35 (076)
8
13
6
12
8
88.100.35 (074)
2
10
9
84.912.aa
9
2
7
11
4
2
88.100.35 (074)
6
7
6
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP385-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

152211A1

O-RING

4шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

2шт.

4

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

150811A1

WASHER

4шт.

9

162659A1

PLUG

ASSY, Incl 2 (Qty 2), 3

2шт.

10

KRV24350

HYD TUBE

RH

1шт.

11

KRV24360

HYD TUBE

LH

1шт.

12

KRV27950

HYDRAULIC HOSE

2шт.

13

KHV10430

SHUT-OFF VALVE

ASSY

2шт.
