(88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE

Запчасти Case CX210D LC LR (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE (88) - ACCESSORIES

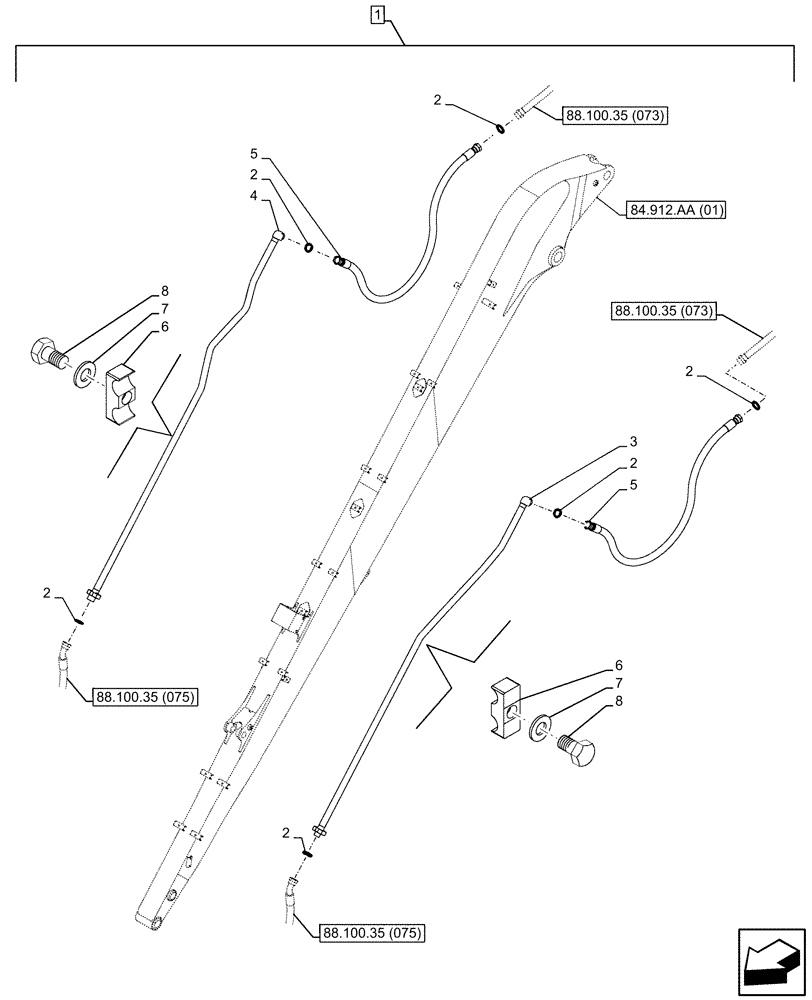

Схема запчастей Case CX210D LC LR - (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, LINE (88) - ACCESSORIES
8
2
8
2
2
1
88.100.35 (073)
88.100.35 (075)
7
88.100.35 (073)
6
7
2
2
3
88.100.35 (075)
6
84.912.aa (01)
2
5
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP385-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

3

KRV24340

HYD TUBE

LH

1шт.

4

KRV24330

HYD TUBE

RH

1шт.

5

KBV17160

HYDRAULIC HOSE

2шт.

6

150777A1

COLLAR

14шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

14шт.

8

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

14шт.

Выбрано товаров: 9
