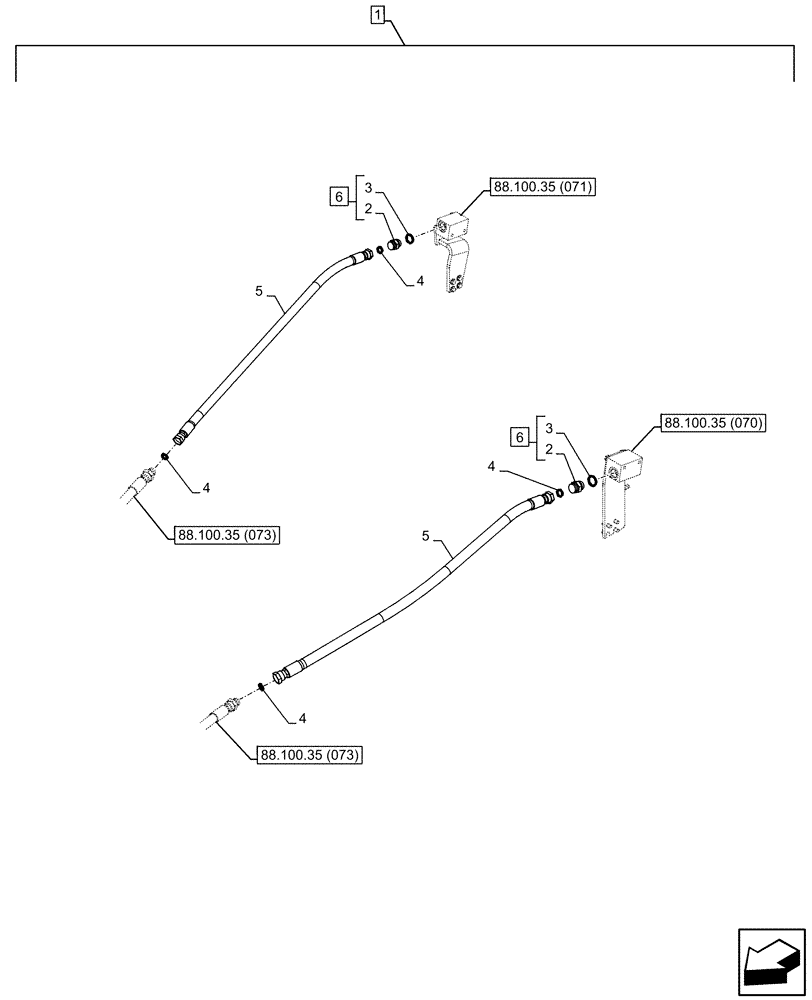

Запчасти Case CX210D LC LR (88.100.35[072]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG2RP385-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

3

154523A1

O-RING

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

5

KSJ13741

HYDRAULIC HOSE

Manifold Valve to Boom Line, 27mm ID x 1300mm

2шт.

6

KHJ1349

ADAPTER

ASSY, Incl 2, 3

2шт.
