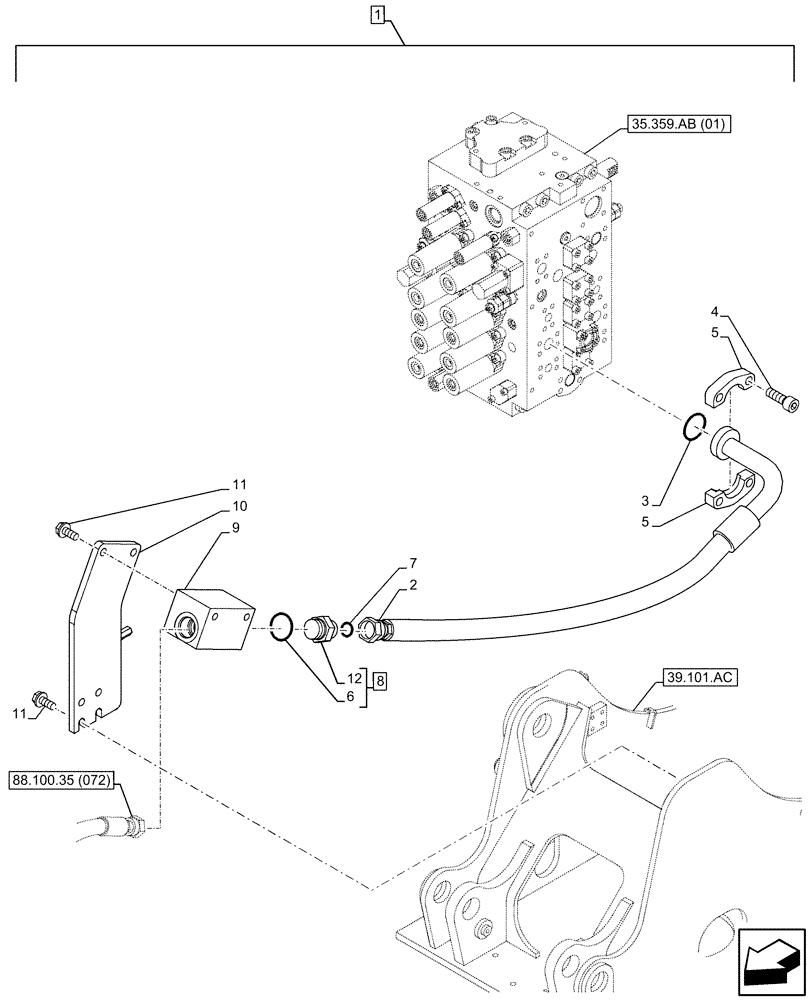

Запчасти Case CX210D LC LR (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG2RP385-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ36930

HYDRAULIC HOSE

Manifold Valve to Control Valve A2 Port, 25mm ID x 870mm

1шт.

3

155211A1

O-RING

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

153459A1

FLANGE

2шт.

6

154523A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KHJ1349

ADAPTER

ASSY, Incl 6, 12

1шт.

9

KRJ12170

MANIFOLD VALVE

1шт.

10

KRJ11470

SUPPORT

1шт.

11

166352A1

BOLT

M12 x 30mm

6шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.
