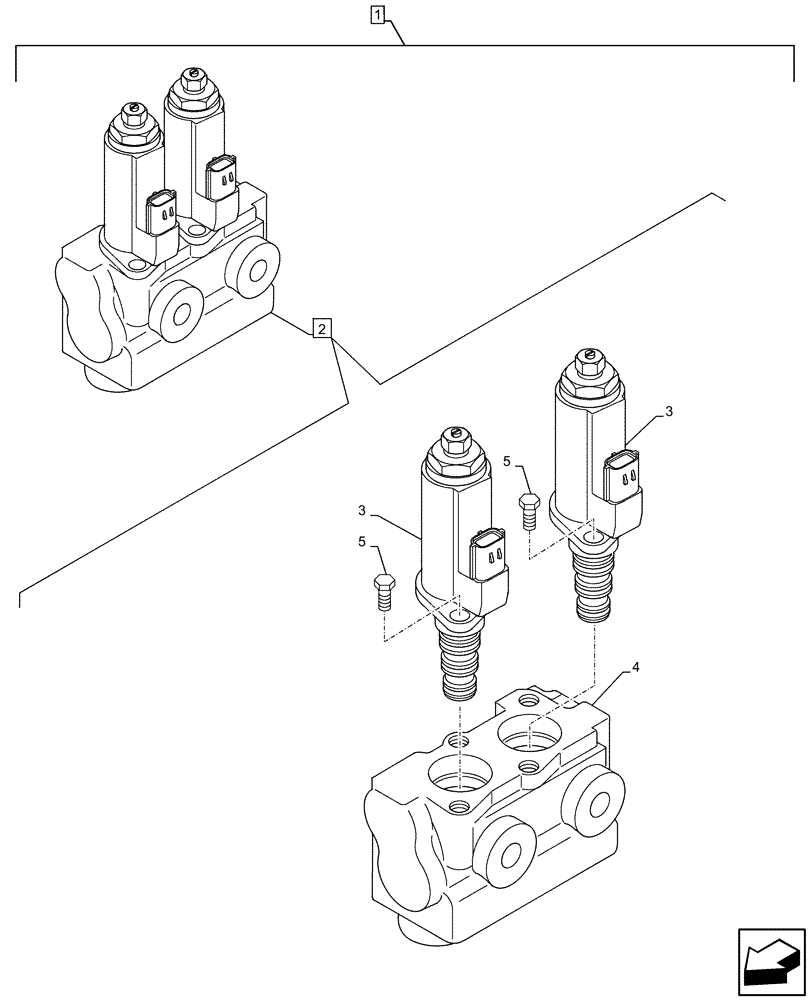

Запчасти Case CX210D LC LR (88.100.35[068]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, COMPONENTS (88) - ACCESSORIES

1

KG2RP385-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

MFJ71500

VALVE SECTION

ASSY, Incl 3 - 5

1шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.

5

102R005Y012R

BOLT

M5 x 12mm

4шт.
