(88.100.35[067]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, MOUNTING

Запчасти Case CX210D LC LR (88.100.35[067]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, MOUNTING (88) - ACCESSORIES

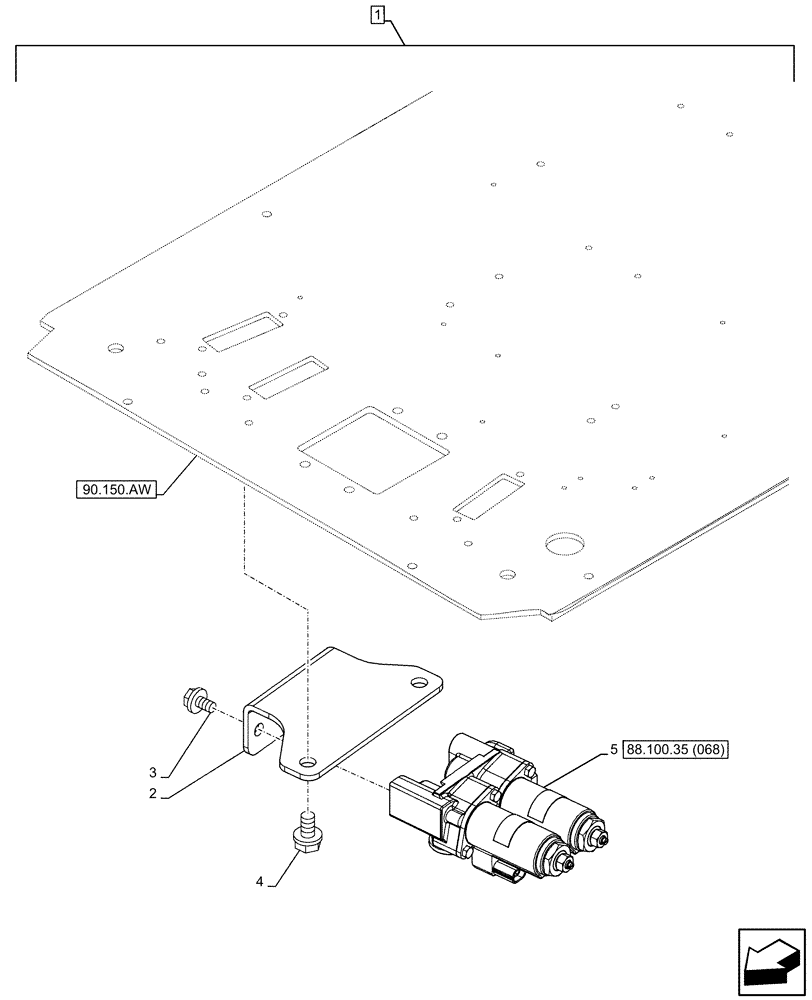

Схема запчастей Case CX210D LC LR - (88.100.35[067]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, MOUNTING (88) - ACCESSORIES
88.100.35 (068)
3
90.150.aw
4
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP385-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28770

BRACKET

1шт.

3

166345A1

BOLT

M8 x 16mm

2шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

5

MFJ71500

VALVE SECTION

ASSY, Reducing Valve

1шт.

Выбрано товаров: 6
