(55.525.AA) - STD + VAR - 488035 - ACCELERATOR, POTENTIOMETER, SEAT, AIR SUSPENSION, HEATED

Запчасти Case CX210D LC LR (55.525.AA) - STD + VAR - 488035 - ACCELERATOR, POTENTIOMETER, SEAT, AIR SUSPENSION, HEATED (55) - ELECTRICAL SYSTEMS

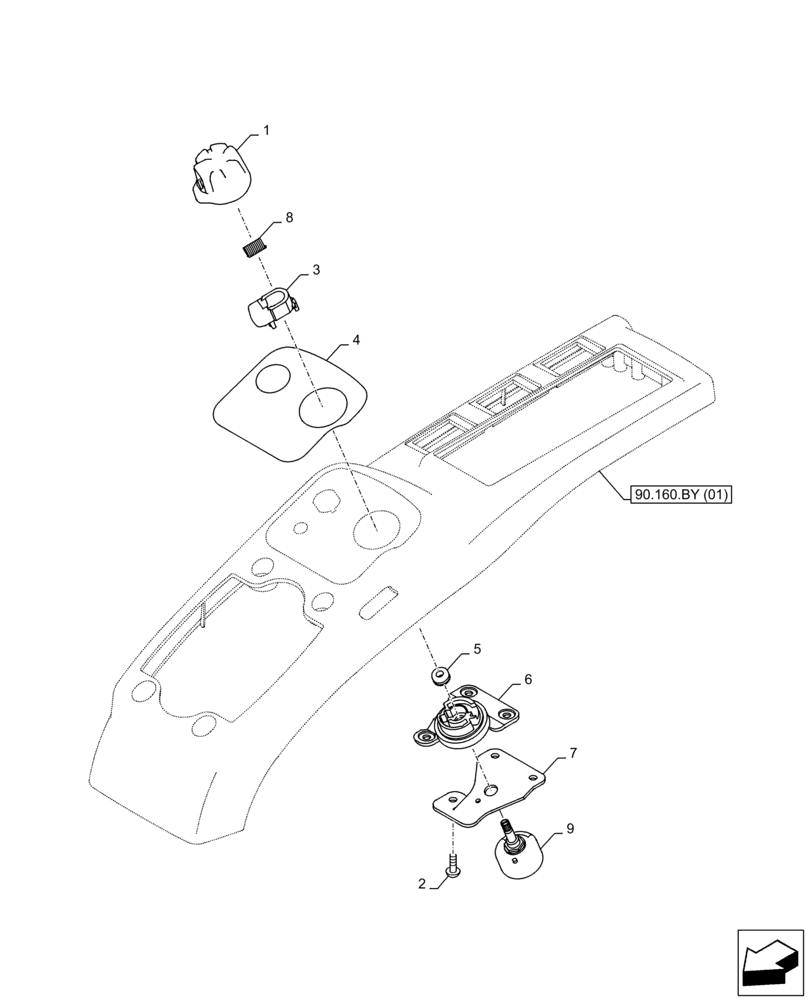

Схема запчастей Case CX210D LC LR - (55.525.AA) - STD + VAR - 488035 - ACCELERATOR, POTENTIOMETER, SEAT, AIR SUSPENSION, HEATED (55) - ELECTRICAL SYSTEMS
1
2
8
90.160.by (01)
3
6
7
9
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN15100

BUTTON

1шт.

2

KHR2737

SELF-TAP SCREW

3шт.

3

KHN15110

BUTTON

1шт.

4

KHN14071

DECAL

1шт.

5

KHR2741

PACKING

1шт.

6

KHN15120

ELEC SUPPORT PLATE

1шт.

7

KHN15130

BRACKET

1шт.

8

KHN15140

SPRING

1шт.

9

KHR2751

SWITCH

1шт.
