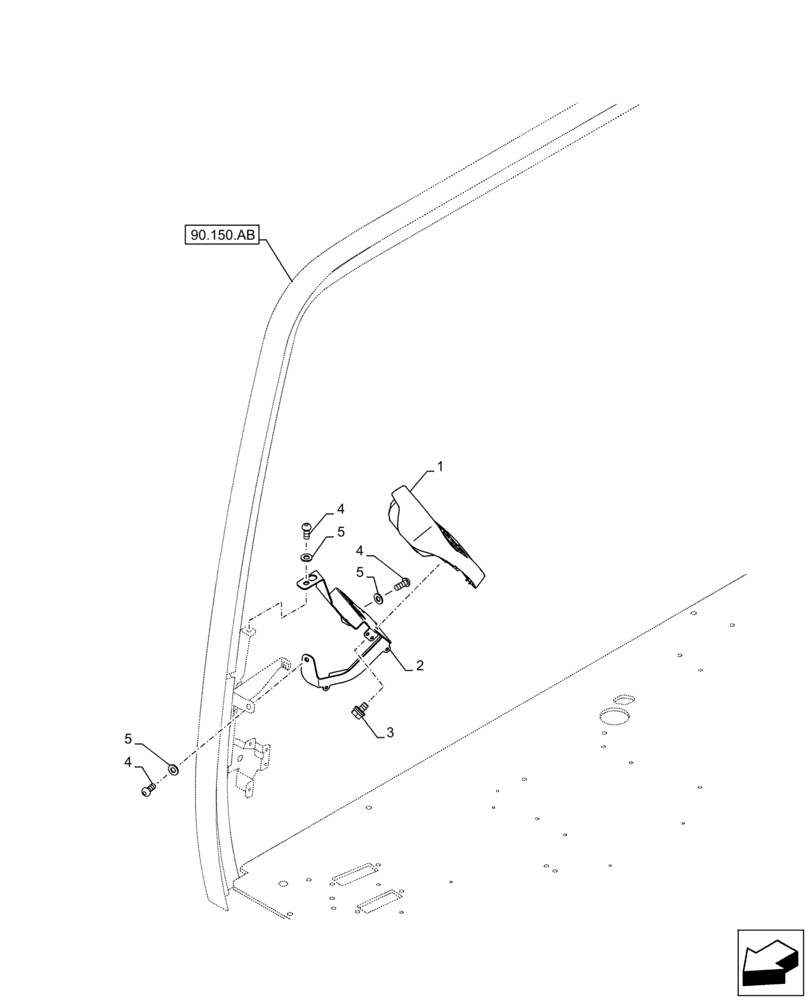

Запчасти Case CX210D LC LR (55.512.BQ) - INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

1

KHR43220

MONITOR

, Serial Range: -C0526

1шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.

1

KHR43221

MONITOR

, Serial Range: D0526-C0527

1шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.

1

KHR43222

MONITOR

, Start Serial: D0527

1шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.

2

KHR25010

BRACKET, SUPPORTING

1шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.

3

KHN27480

BOLT

M6 x 12mm

4шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.

4

KHN27490

BOLT

3шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.

5

KHN27500

WASHER

3шт.

Parts are Included in Cab Assembly PN KHN37080 (EU) and KHN37081 (EU) and KHN37082 (EU) and PN KHN37090 (NA) and KHN37091 (NA) and KHN37092 (NA)

1шт.
