Запчасти Case CX210D LC LR (55.512.AA[02]) - VAR - 781833 - RADIO (55) - ELECTRICAL SYSTEMS

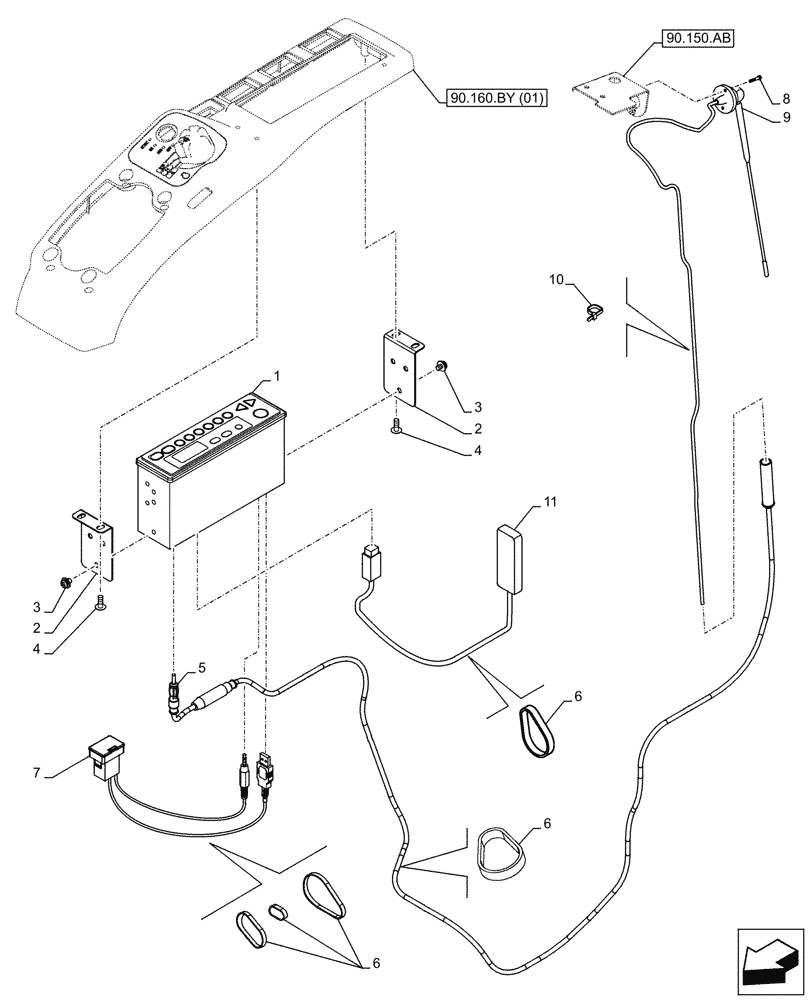

![Схема запчастей Case CX210D LC LR - (55.512.AA[02]) - VAR - 781833 - RADIO (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/5403965.png)
90.160.by (01)
3
5
7
3
1
6
9
4
10
6
2
8
6
4
11
2
90.150.ab
№
Артикул
Название
Примечание
Количество
1
KHR44180
RADIO
1шт.
2
KHR3572
BRACKET
2шт.
3
157537A1
SCREW
4шт.
4
KHR2737
SELF-TAP SCREW
4шт.
5
KHR32890
CABLE
1шт.
6
150496A1
MOUNTING CLIP
6шт.
7
KHR44200
RADIO
1шт.
8
KHN16110
SCREW
M4 x 20mm
2шт.
Part is Included in Cab Assembly PN KHN37090, KHN37091, KHN37092
1шт.
9
KHN25790
ANTENNA
1шт.
Part is Included in Cab Assembly PN KHN37090, KHN37091, KHN37092
1шт.
10
KHN17180
MOUNTING CLIP
2шт.
Part is Included in Cab Assembly PN KHN37090, KHN37091, KHN37092
1шт.
11
KHR42000
RADIO
Bluetooth
1шт.
Выбрано товаров: 14
