(55.425.AI[01]) - VAR - 461863 - ROTATION SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC LR (55.425.AI[01]) - VAR - 461863 - ROTATION SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

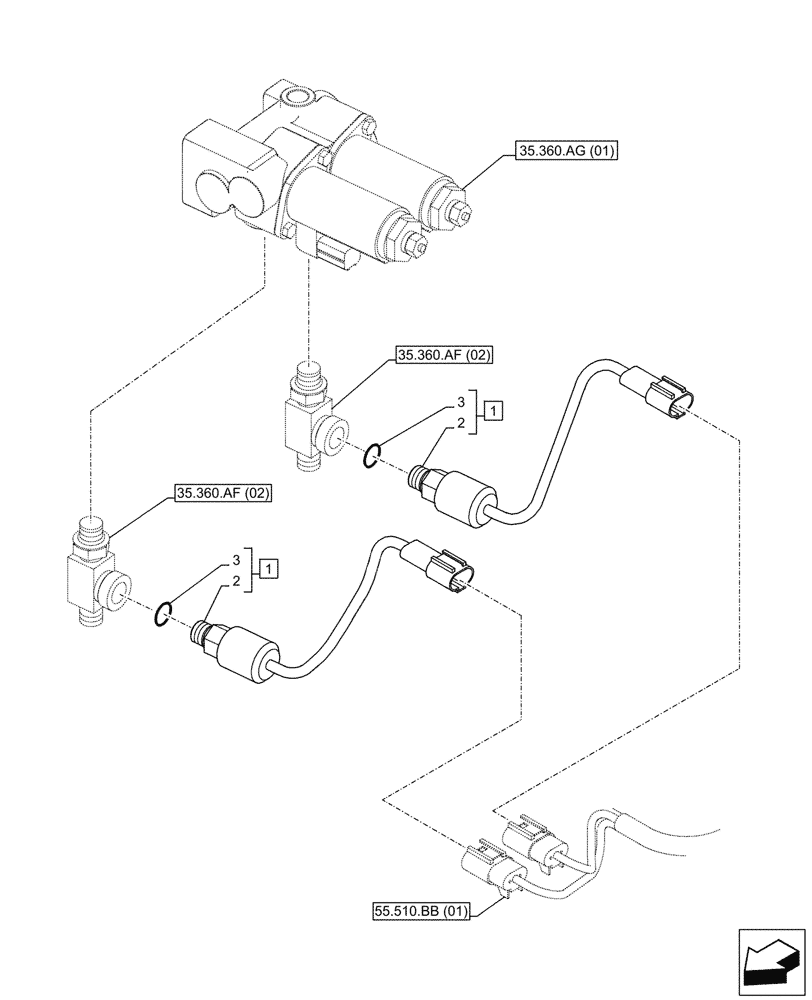

Схема запчастей Case CX210D LC LR - (55.425.AI[01]) - VAR - 461863 - ROTATION SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
2
2
55.510.bb (01)
35.360.ag (01)
3
1
35.360.af (02)
3
1
35.360.af (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR21490

PRESSURE SWITCH

0.49Mpa, ASSY, Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Sensor Fitting, Incl in 1

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

Выбрано товаров: 3
