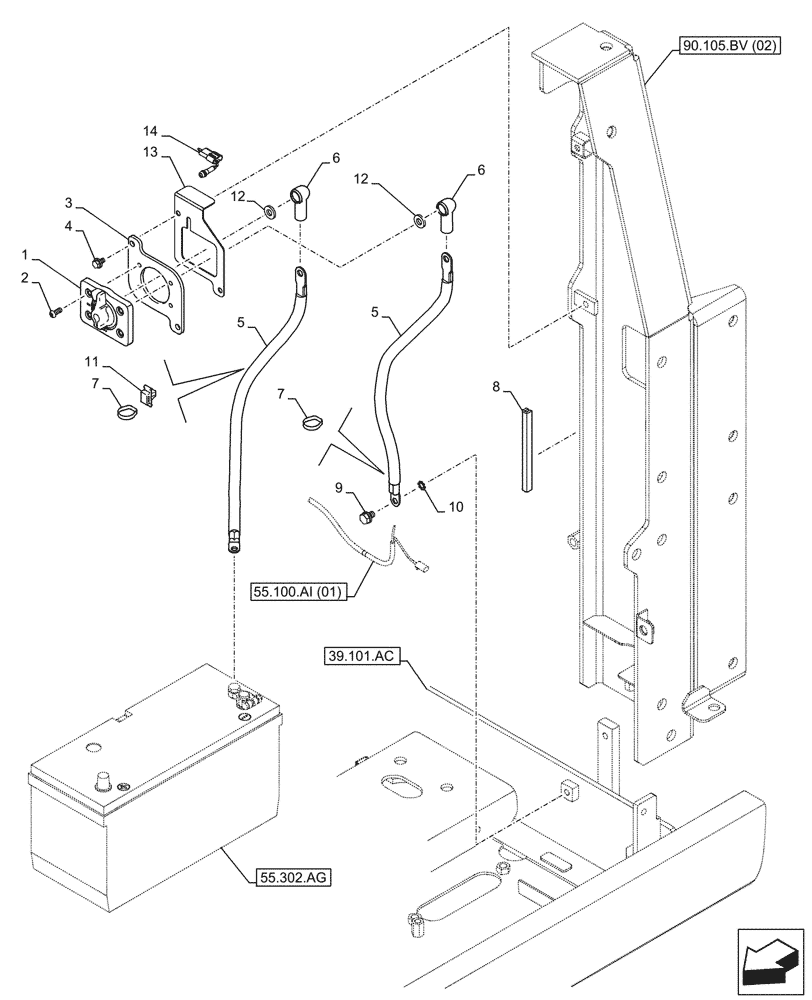

Запчасти Case CX210D LC LR (55.302.AI[02]) - BATTERY ISOLATOR, SWITCH - ASN NGS7H1300 (55) - ELECTRICAL SYSTEMS

1

KHR34680

ROTARY SWITCH

, Serial Range: -C0511

1шт.

1

KHR34681

ROTARY SWITCH

ASSY, Incl 12, Start Serial: D0511

1шт.

2

KHR37580

BOLT

M8 x 20mm

4шт.

3

KRR21920

BRACKET

, Serial Range: -C0512

1шт.

3

KRR21921

BRACKET

, Start Serial: D0512

1шт.

4

166345A1

BOLT

M8 x 16mm, Serial Range: -C0512

2шт.

4

166350A1

BOLT

M8 x 20mm, Start Serial: D0512

2шт.

5

KHR36520

POS BATTERY CABLE

2шт.

6

KHR39760

CAP

2шт.

7

150496A1

MOUNTING CLIP

3шт.

8

HKJ0042

SEAL PROTECTION

200mm

1шт.

9

166346A1

BOLT,Sems, M10

1шт.

10

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

11

KHR10220

MOUNTING CLIP

1шт.

12

150409A1

WASHER

M10, Serial Range: -C0511

4шт.

12

KHR49150

SPACER

, Start Serial: D0511

2шт.

13

KRR23740

BRACKET

, Start Serial: D0512

1шт.

14

KHR47290

WORK LAMP

, Start Serial: D0512

1шт.
