(55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7H1299

Запчасти Case CX210D LC LR (55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7H1299 (55) - ELECTRICAL SYSTEMS

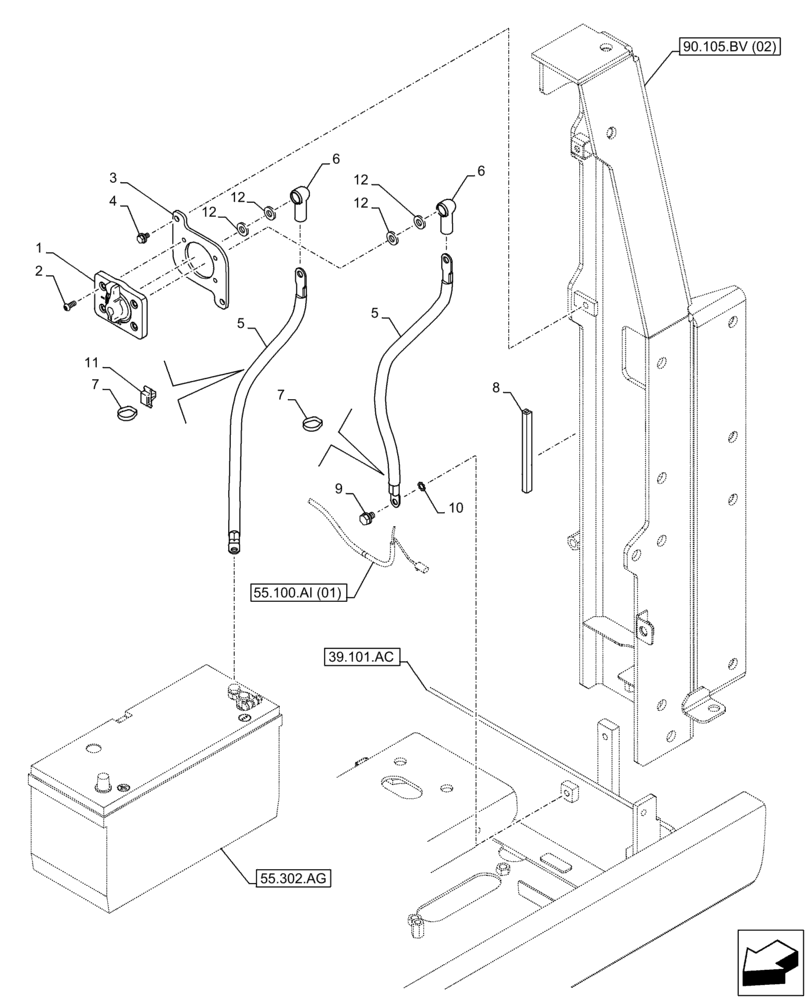

Схема запчастей Case CX210D LC LR - (55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7H1299 (55) - ELECTRICAL SYSTEMS
8
12
5
12
39.101.ac
3
12
6
55.302.ag
10
7
55.100.ai (01)
12
2
6
5
4
11
1
9
90.105.bv (02)
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR34680

ROTARY SWITCH

1шт.

2

KHR37580

BOLT

M8 x 20mm

4шт.

3

KRR21920

BRACKET

1шт.

4

166345A1

BOLT

M8 x 16mm

2шт.

5

KHR36520

POS BATTERY CABLE

2шт.

6

KHR39760

CAP

2шт.

7

150496A1

MOUNTING CLIP

3шт.

8

HKJ0042

SEAL PROTECTION

200mm

1шт.

9

166346A1

BOLT,Sems, M10

1шт.

10

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

11

KHR10220

MOUNTING CLIP

1шт.

12

150409A1

WASHER

M10, Start Serial: NFS7H1112

4шт.

Выбрано товаров: 12
