(48.138.AB[02]) - TRACK ROLLER, COMPONENTS - BSN NFS7H1285

Запчасти Case CX210D LC LR (48.138.AB[02]) - TRACK ROLLER, COMPONENTS - BSN NFS7H1285 (48) - TRACKS & TRACK SUSPENSION

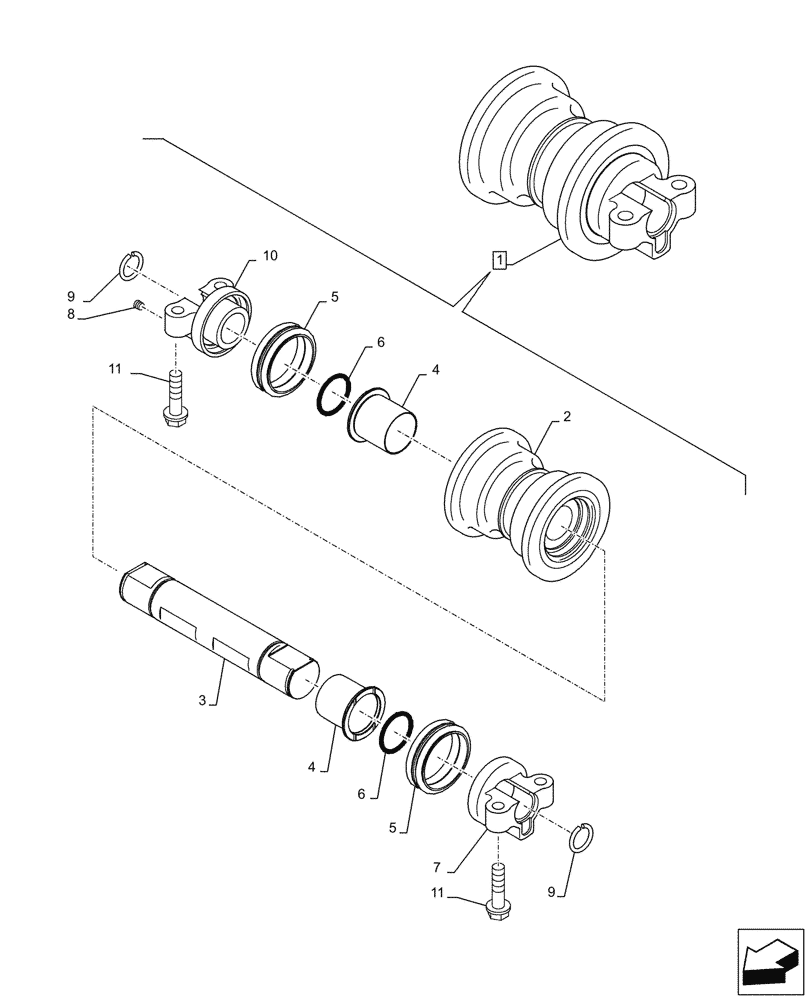

Схема запчастей Case CX210D LC LR - (48.138.AB[02]) - TRACK ROLLER, COMPONENTS - BSN NFS7H1285 (48) - TRACKS & TRACK SUSPENSION
11
3
2
1
9
5
5
7
9
8
11
6
4
4
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRA10360

TRACK ROLLER

ASSY, LH/RH, Incl 2 - 10, Serial Range: -C0438

16шт.

1

KRA17130

TRACK ROLLER

ASSY, LH/RH, Incl 2 - 10, Start Serial: D0438

16шт.

2

KRA10370

TRACK ROLLER

, Serial Range: -C0438

1шт.

2

KRA17140

TRACK ROLLER

, Start Serial: D0438

1шт.

3

160421A1

WHEEL SHAFT

1шт.

4

160423A1

BUSHING,65mm ID x 87mm OD x 69mm L

2шт.

5

152736A1

OIL SEAL

, Serial Range: -C0438

2шт.

5

KRA17170

SEAL

, Start Serial: D0438

2шт.

6

154639A1

O-RING

2шт.

7

KRA14400

CASING, BEARING ROLL

, Serial Range: -C0438

1шт.

7

KRA17160

COLLAR

, Start Serial: D0438

1шт.

8

150821A1

PLUG

1шт.

9

150597A1

COLLAR

2шт.

10

KRA14410

CASING, BEARING ROLL

, Serial Range: -C0438

1шт.

10

KRA17150

COLLAR

, Start Serial: D0438

1шт.

11

165932A1

BOLT,M18 x 75mm

64шт.
