(35.738.AE[04]) - VAR - 481248 - BUCKET CYLINDER, LINE (ARM L=6.4M)

Запчасти Case CX210D LC LR (35.738.AE[04]) - VAR - 481248 - BUCKET CYLINDER, LINE (ARM L=6.4M) (35) - HYDRAULIC SYSTEMS

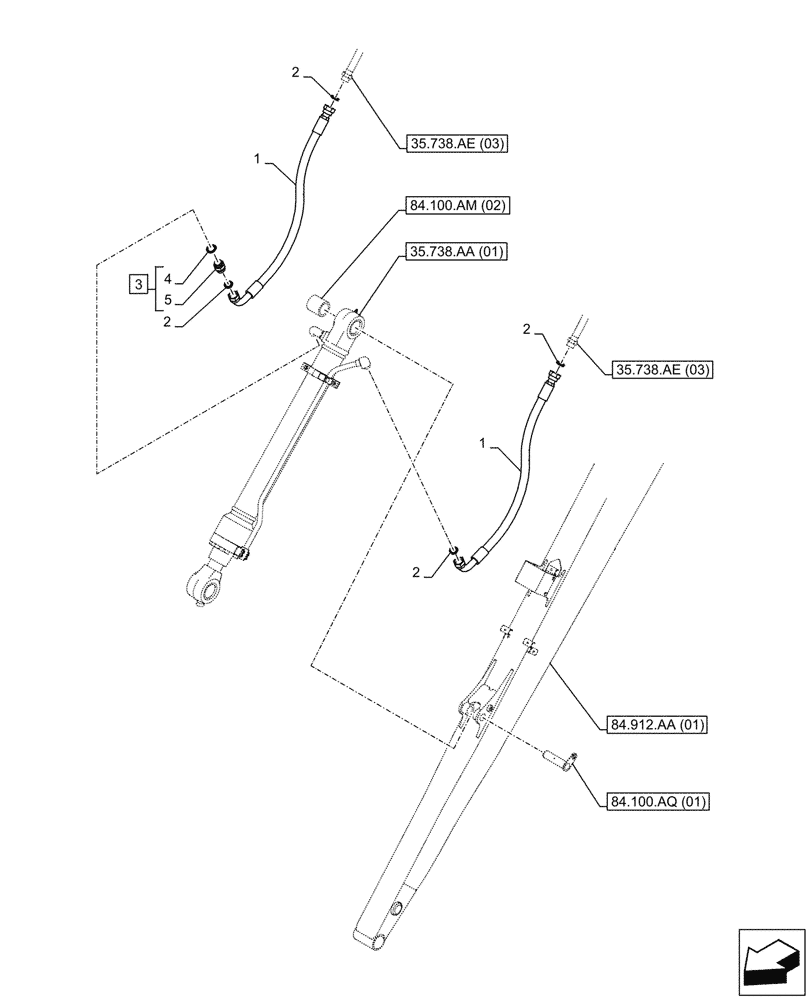

Схема запчастей Case CX210D LC LR - (35.738.AE[04]) - VAR - 481248 - BUCKET CYLINDER, LINE (ARM L=6.4M) (35) - HYDRAULIC SYSTEMS
35.738.aa (01)
2
84.100.am (02)
35.738.ae (03)
5
4
2
1
3
84.912.aa (01)
2
2
84.100.aq (01)
1
35.738.ae (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV14231

HYDRAULIC HOSE

19mm ID x 900mm

2шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

3

KHJ1348

ADAPTER

ASSY, Incl 4, 5

1шт.

4

154503A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.
