Запчасти Case CX210D LC LR (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

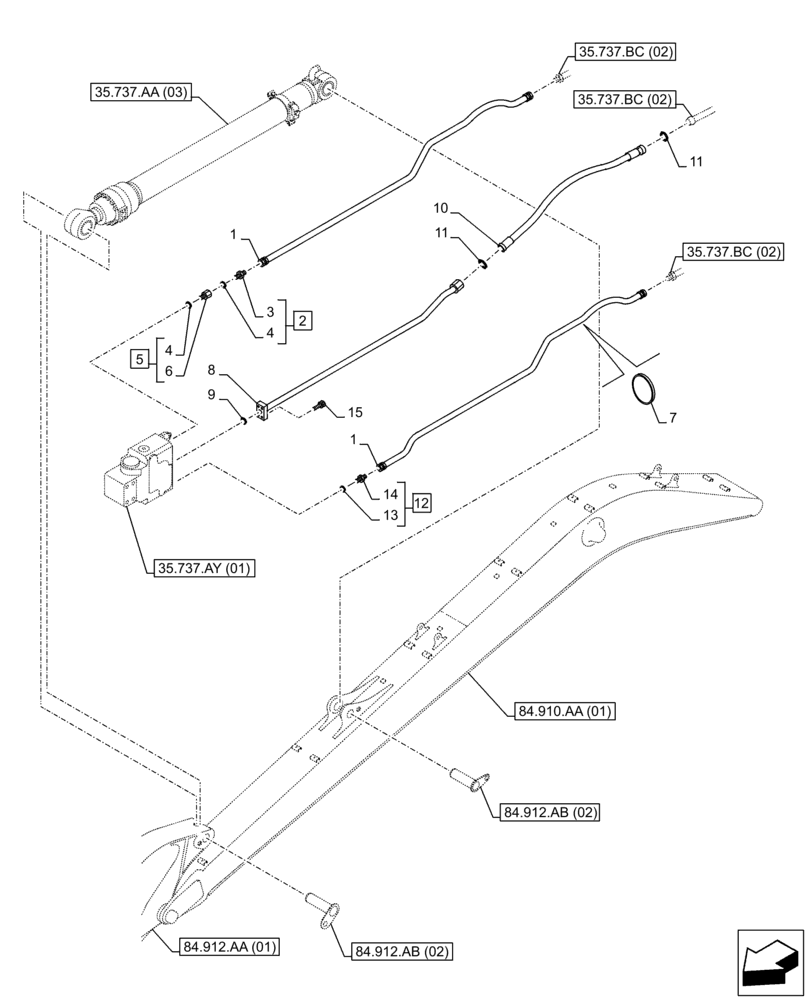

Схема запчастей Case CX210D LC LR - (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
84.912.aa (01)
1
84.912.ab (02)
35.737.bc (02)
15
3
2
35.737.bc (02)
10
4
9
4
11
35.737.bc (02)
8
13
35.737.aa (03)
84.910.aa (01)
11
84.912.ab (02)
1
35.737.ay (01)
7
6
5
14
12

Артикул

Название

Примечание

Количество

1

KHJ17480

HYDRAULIC HOSE

9mm ID x 2900mm

2шт.

2

152747A1

ADAPTER

ASSY, G1/4" x 3/8", Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

1шт.

7

150067A1

MOUNTING CLIP

16шт.

8

KRV24560

HYD TUBE

1шт.

9

155211A1

O-RING

1шт.

10

KRV12781

HYDRAULIC HOSE

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

12

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 13, 14

1шт.

13

154475A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

15

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

Выбрано товаров: 15
