(35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX210D LC LR (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

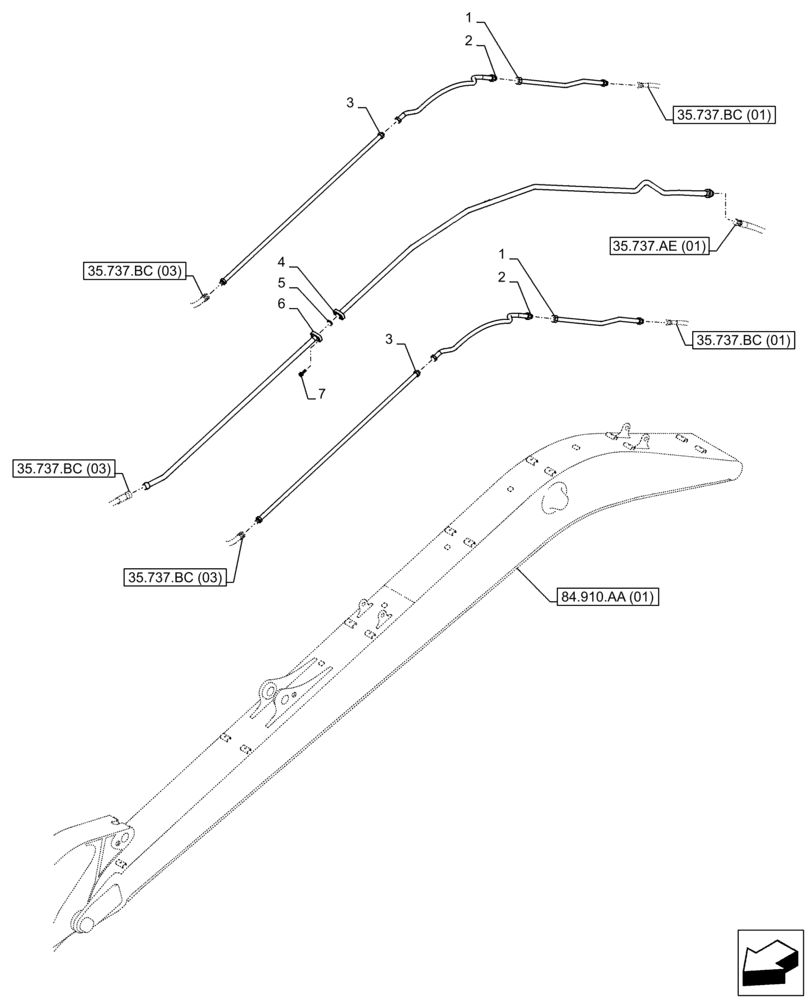

Схема запчастей Case CX210D LC LR - (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.737.ae (01)
84.910.aa (01)
2
35.737.bc (03)
35.737.bc (01)
3
7
35.737.bc (03)
35.737.bc (01)
6
1
35.737.bc (03)
5
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV24290

HYD TUBE

2шт.

2

KHJ16820

HYDRAULIC HOSE

2100mm

2шт.

3

KRV44920

TUBE

2шт.

4

KRV44140

PIPE

1шт.

5

154528A1

O-RING

1шт.

6

KRV2895

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

Выбрано товаров: 7
