(35.360.AM[02]) - VAR - 461863, 461557 - ARM, LINE, CLAMSHELL BUCKET, ROTATION (ARM L=6.4M)

Запчасти Case CX210D LC LR (35.360.AM[02]) - VAR - 461863, 461557 - ARM, LINE, CLAMSHELL BUCKET, ROTATION (ARM L=6.4M) (35) - HYDRAULIC SYSTEMS

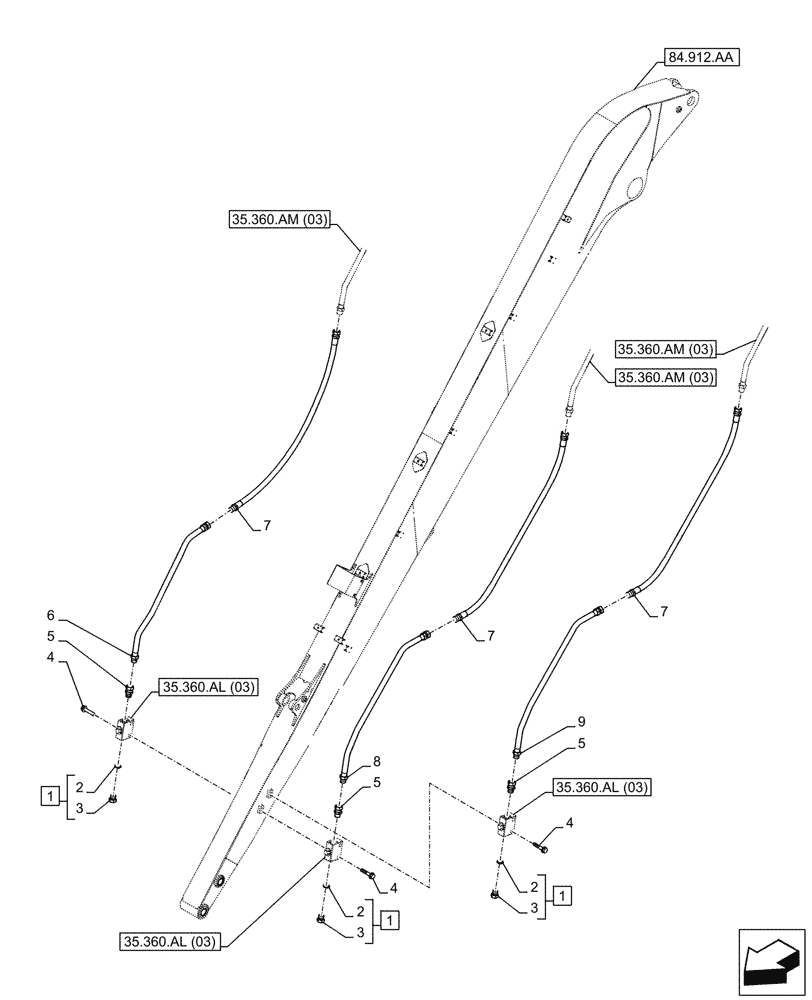

Схема запчастей Case CX210D LC LR - (35.360.AM[02]) - VAR - 461863, 461557 - ARM, LINE, CLAMSHELL BUCKET, ROTATION (ARM L=6.4M) (35) - HYDRAULIC SYSTEMS
2
7
4
1
5
35.360.al (03)
7
4
35.360.am (03)
2
5
3
35.360.am (03)
3
8
35.360.al (03)
4
3
6
9
84.912.aa
1
35.360.al (03)
1
7
35.360.am (03)
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, G1/2", Incl 2, 3

3шт.

2

150539A1

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60mm

6шт.

5

KHJ1939

FITTING

3шт.

6

KRV43830

PIPE

RH

1шт.

7

KRV43980

HYDRAULIC HOSE

12mm ID x 1000mm

3шт.

8

KRV43820

PIPE

1шт.

9

KRV43840

PIPE

1шт.

Выбрано товаров: 9
