(35.360.AL[02]) - VAR - 461561, 461583, 461571, 461865, 461867, 461869, 461870, 461871, 461872 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, COMPONENTS

Запчасти Case CX210D LC LR (35.360.AL[02]) - VAR - 461561, 461583, 461571, 461865, 461867, 461869, 461870, 461871, 461872 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, COMPONENTS (35) - HYDRAULIC SYSTEMS

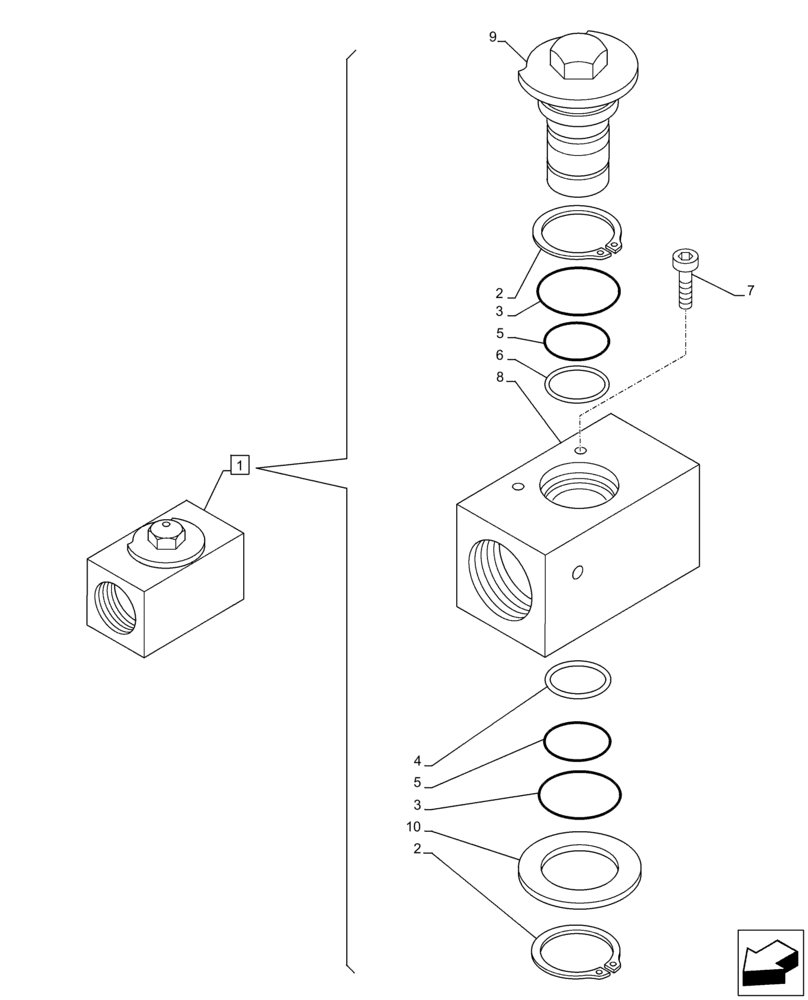

Схема запчастей Case CX210D LC LR - (35.360.AL[02]) - VAR - 461561, 461583, 461571, 461865, 461867, 461869, 461870, 461871, 461872 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
5
5
1
8
6
2
4
3
3
7
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHV10430

SHUT-OFF VALVE

ASSY, Incl 2 - 10

2шт.

2

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

3

154543A1

O-RING

2шт.

4

154012A1

BACK-UP RING

1шт.

5

154519A1

O-RING

2шт.

6

153994A1

BACK-UP RING

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

Выбрано товаров: 10
