(35.360.AL[01]) - VAR - 461561, 461583, 461571, 461865, 461867, 461869, 461870, 461871, 461872 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW

Запчасти Case CX210D LC LR (35.360.AL[01]) - VAR - 461561, 461583, 461571, 461865, 461867, 461869, 461870, 461871, 461872 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

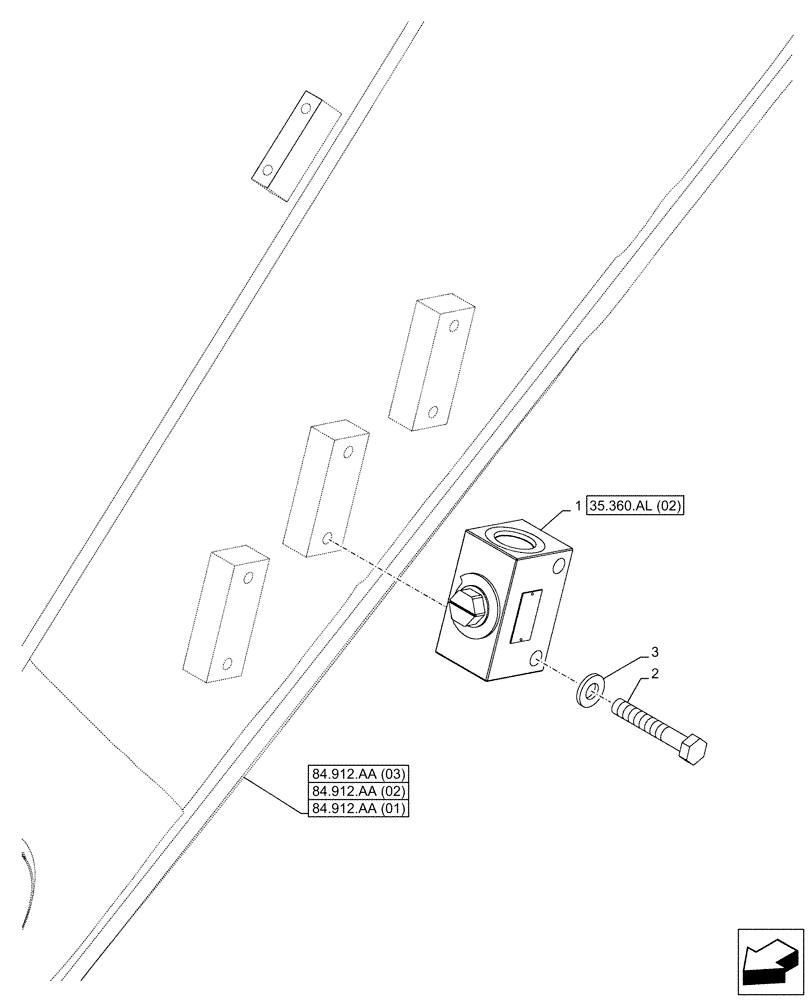

Схема запчастей Case CX210D LC LR - (35.360.AL[01]) - VAR - 461561, 461583, 461571, 461865, 461867, 461869, 461870, 461871, 461872 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
84.912.aa (01)
2
1
3
84.912.aa (03)
35.360.al (02)
84.912.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHV10430

SHUT-OFF VALVE

ASSY

1шт.

2

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

3

150811A1

WASHER

M12

4шт.

Выбрано товаров: 3
