(35.360.AK[05]) - VAR - 461571, 461872 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC LR (35.360.AK[05]) - VAR - 461571, 461872 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

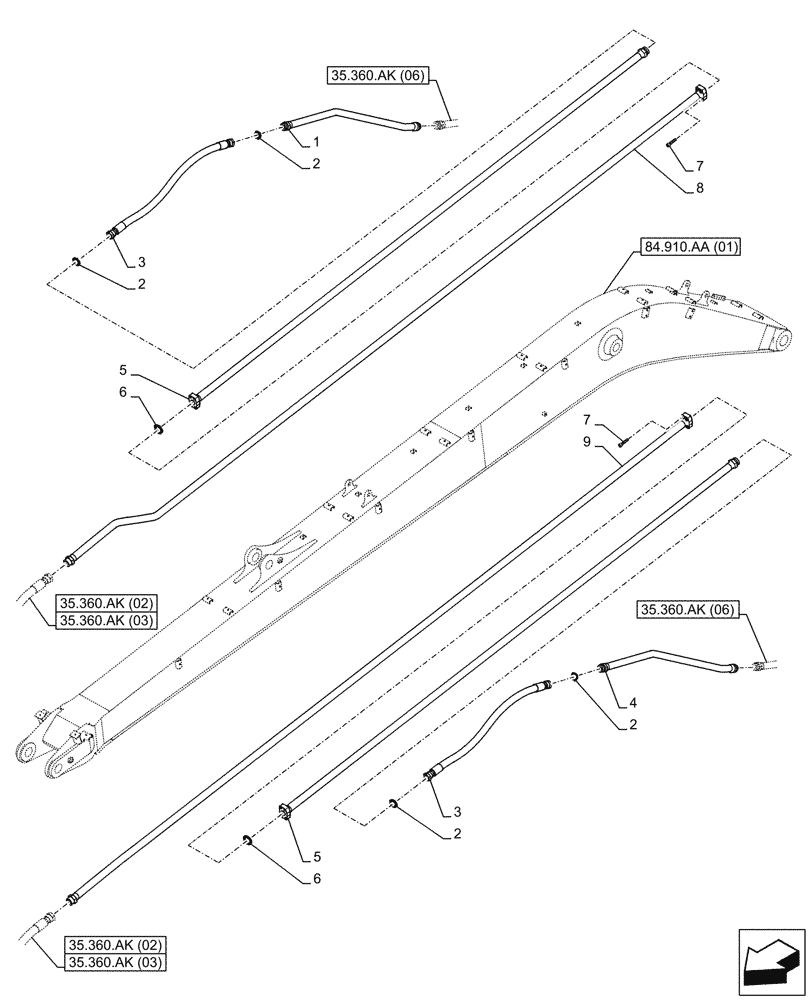

Схема запчастей Case CX210D LC LR - (35.360.AK[05]) - VAR - 461571, 461872 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ak (06)
3
2
7
6
2
3
4
6
9
2
1
5
5
2
7
8
84.910.aa (01)
35.360.ak (02)
35.360.ak (02)
35.360.ak (03)
35.360.ak (03)
35.360.ak (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV38010

PIPE

RH

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

3

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

4

KRV38020

PIPE

LH

1шт.

5

KRV17540

HYD TUBE

2шт.

6

154548A1

O-RING

2шт.

7

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

8

KRV44170

PIPE

RH

1шт.

9

KRV44180

PIPE

LH

1шт.

Выбрано товаров: 9
