(35.360.AF[01]) - VAR - 461863, 461557 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION

Запчасти Case CX210D LC LR (35.360.AF[01]) - VAR - 461863, 461557 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION (35) - HYDRAULIC SYSTEMS

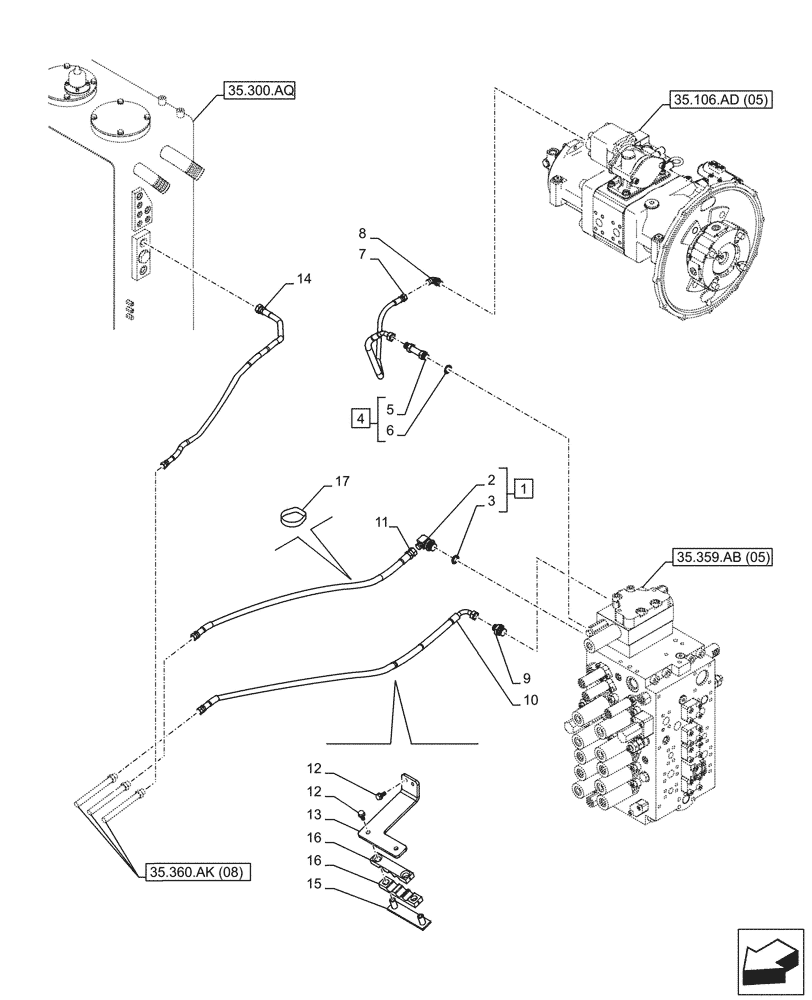

Схема запчастей Case CX210D LC LR - (35.360.AF[01]) - VAR - 461863, 461557 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION (35) - HYDRAULIC SYSTEMS
35.359.ab (05)
6
11
9
2
15
16
4
12
5
10
7
16
8
1
3
12
13
17
35.360.ak (08)
14
35.106.ad (05)
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

157936A1

ELBOW

G3/4" x G1/2", ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 1

1шт.

3

154503A1

O-RING

1шт.

4

KAJ2432

ADAPTER

G1/2" x G1/2", ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

154487A1

O-RING

1шт.

7

KBJ24900

HYDRAULIC HOSE

12mm ID x 1200mm

1шт.

8

KHJ28600

ELBOW

G1/2" x G1/2"

1шт.

9

168988A1

ADAPTER

G1/2" x G3/4"

1шт.

10

KBJ12440

HYDRAULIC HOSE

12mm ID x 1560mm

1шт.

11

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

12mm ID x 1430mm

1шт.

12

166052A1

BOLT

M10 x 25mm

4шт.

13

KBJ19730

BRACKET

1шт.

14

KRJ24570

HYDRAULIC HOSE

12mm ID x 1650mm

1шт.

15

KRJ11590

SUPPORT

1шт.

16

KRJ11580

HOSE CLIP

2шт.

17

150496A1

MOUNTING CLIP

250mm

4шт.
