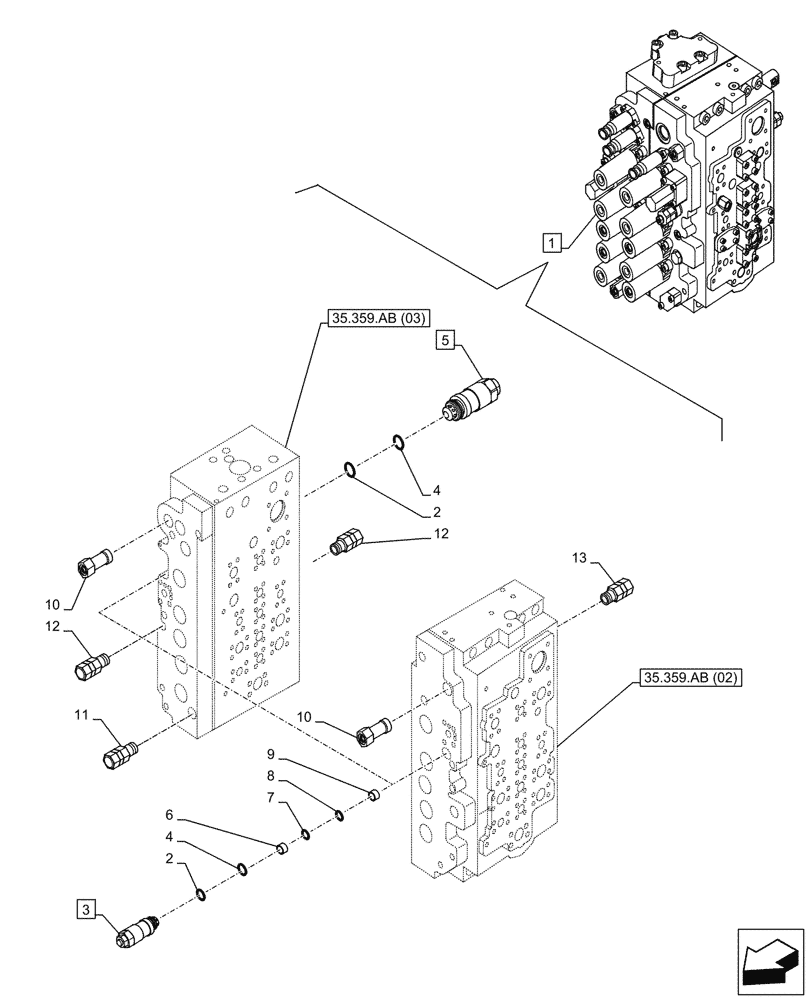

Запчасти Case CX210D LC LR (35.359.AY[01]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KRJ37520

CONTROL VALVE

ASSY, Incl 2 - 13

1шт.

See also Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04)

1шт.

2

155223A1

O-RING

3шт.

3

LJ00734

HYDRAULIC VALVE

ASSY, Incl 2 (Qty 1), 4 (Qty 1), 6 (Qty 1), 7 - 9

2шт.

4

154463A1

O-RING

3шт.

5

LJ014740

VALVE PRESSURE RELIE

ASSY, Incl 2 (Qty 1), 4 (Qty 1)

1шт.

6

164905A1

BACK-UP RING

2шт.

7

164906A1

O-RING

1шт.

8

163323A1

O-RING

1шт.

9

164575A1

BACK-UP RING

2шт.

10

LJ022730

VALVE

, Serial Range: -NFS7H1248

2шт.

10

LJ023210

VALVE

, Start Serial: NFS7H1249

2шт.

11

LJ023170

VALVE

1шт.

12

LJ01196

VALVE, PRESSURE RELI

2шт.

13

LJ01195

VALVE, PRESSURE RELI

1шт.
