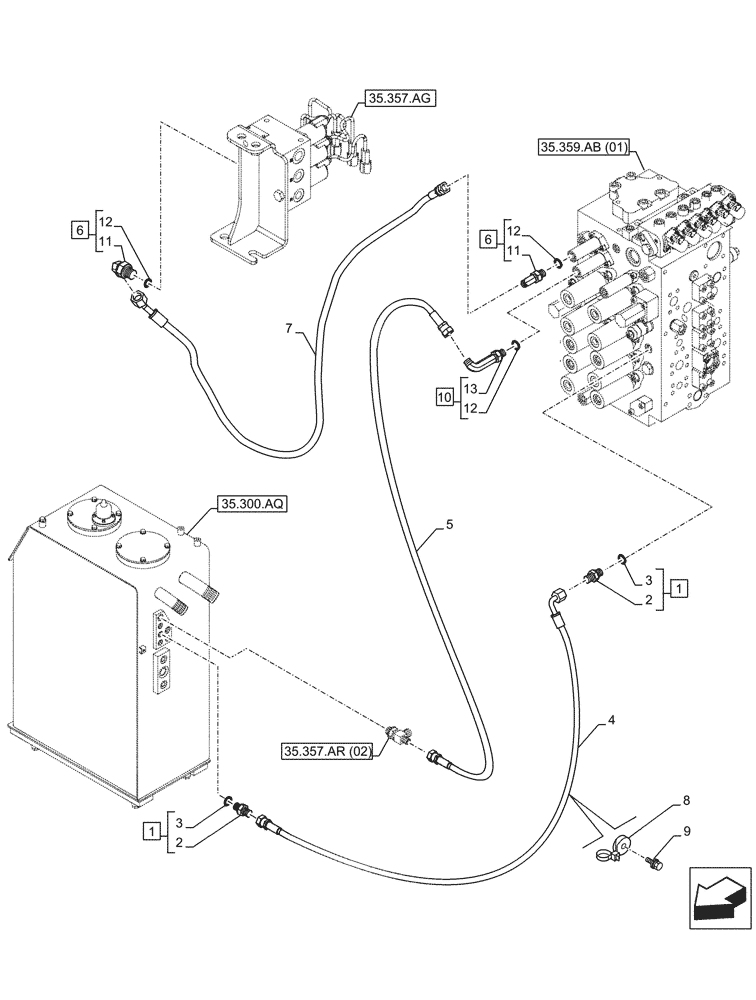

Запчасти Case CX210D LC LR (35.359.AE[01]) - CONTROL VALVE LINE, HYDRAULIC OIL, TANK (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX210D LC LR - (35.359.AE[01]) - CONTROL VALVE LINE, HYDRAULIC OIL, TANK (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5318015.png)
35.357.ag
8
1
13
5
12
1
2
9
7
4
3
2
11
12
12
11
6
3
10
6
35.359.ab (01)
35.357.ar (02)
35.300.aq
№
Артикул
Название
Примечание
Количество
1
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ASSY, Incl 2 - 3
2шт.
2
NSS
NOT SOLD SEPARAT
Fitting, Incl in 1
2шт.
3
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
4
KHJ13800
HOSE
6mm ID x 1350mm
1шт.
5
KHJ2394
HOSE ASSY.
6mm ID x 550mm
1шт.
6
KHJ28580
ELBOW
G1/4" x G1/4", ASSY, Incl 11, 12 (Qty 1)
2шт.
7
KHJ32150
HOSE
6mm ID x 2000mm
1шт.
8
KHR2584
CLAMP
1шт.
9
KHJ2298
BOLT,Spcl
1шт.
10
KHJ28810
ELBOW
90°-Fitting, G1/4" x G1", ASSY, Incl 113, 12 (Qty 1)
1шт.
11
NSS
NOT SOLD SEPARAT
Fitting, Incl in 6
1шт.
12
150960A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
13
NSS
NOT SOLD SEPARAT
90°-Fitting, Incl in 10
1шт.
Выбрано товаров: 13
