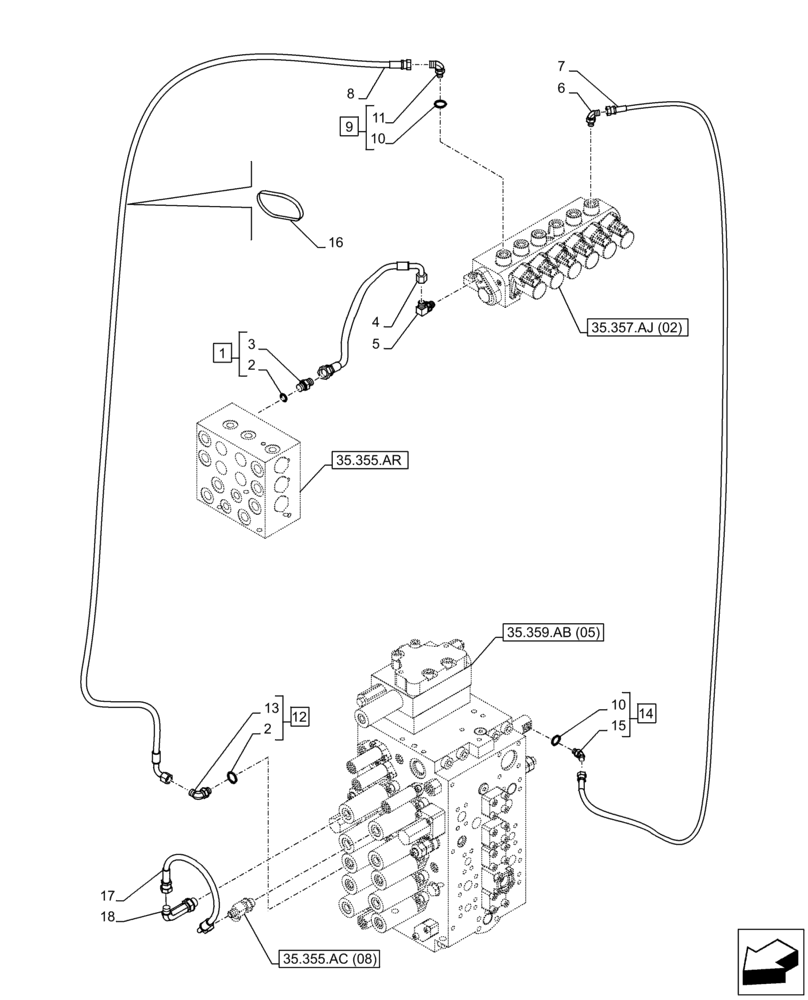

Запчасти Case CX210D LC LR (35.357.AO[02]) - VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 2, 3

1шт.

2

154475A1

O-RING

2шт.

3

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl 1

1шт.

4

KHJ31950

HOSE

9mm ID x 2100mm

1шт.

5

KHJ29610

ELBOW

G3/8" x G3/8"

1шт.

6

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

7

KHJ2240

HOSE

6mm ID x 450mm

1шт.

8

KHJ26370

HOSE

9mm ID x 650mm

1шт.

9

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 10 (Qty 1), 11

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 9

1шт.

12

KHJ28590

ELBOW

ASSY, Incl 2, (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl 12

1шт.

14

KHJ28630

ELBOW

ASSY, Incl 10 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 14

1шт.

16

150496A1

MOUNTING CLIP

250mm

4шт.

17

KHJ2342

HOSE

6mm ID x 380mm

1шт.

18

KHJ28880

ELBOW

G3/8" x G1/4"

1шт.
