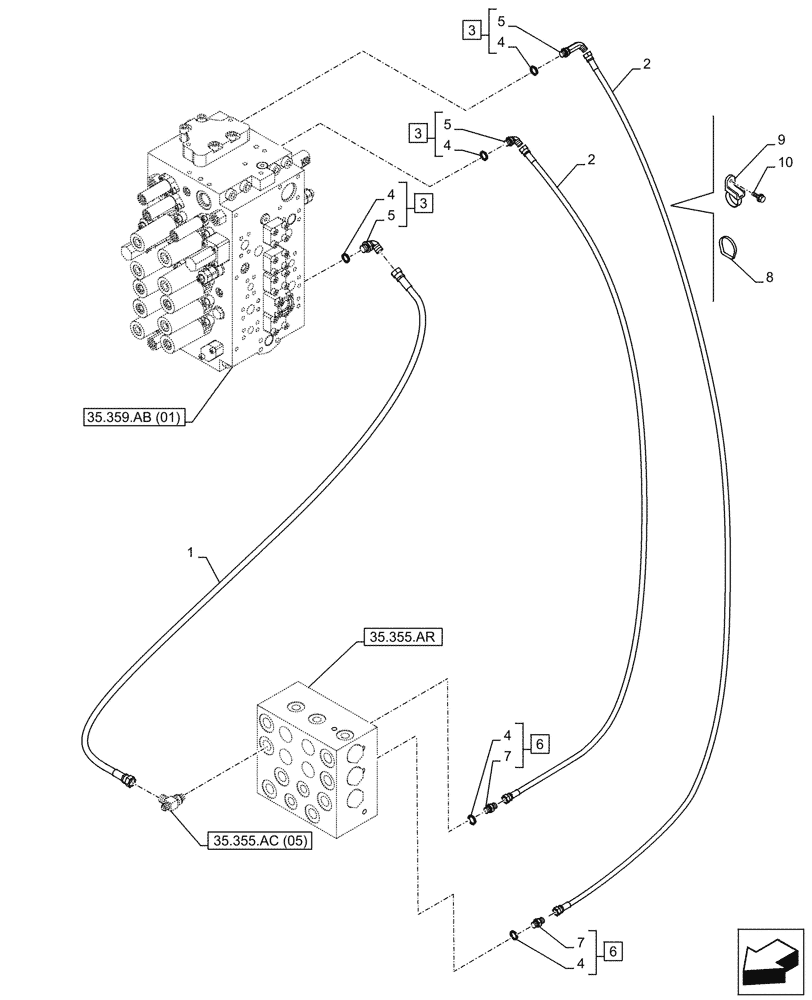

Запчасти Case CX210D LC LR (35.355.AC[10]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ26660

HOSE ASSY.

9mm ID x 1250mm

1шт.

2

KHJ2318

HOSE

9mm ID x 1400mm

2шт.

3

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 4 (Qty 3), 5

3шт.

4

154475A1

O-RING

5шт.

5

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 3

3шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 4 (Qty 2), 7

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl 6

2шт.

8

150498A1

MOUNTING CLIP

300mm

4шт.

9

KHR2581

CLAMP

M8

2шт.

10

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.
