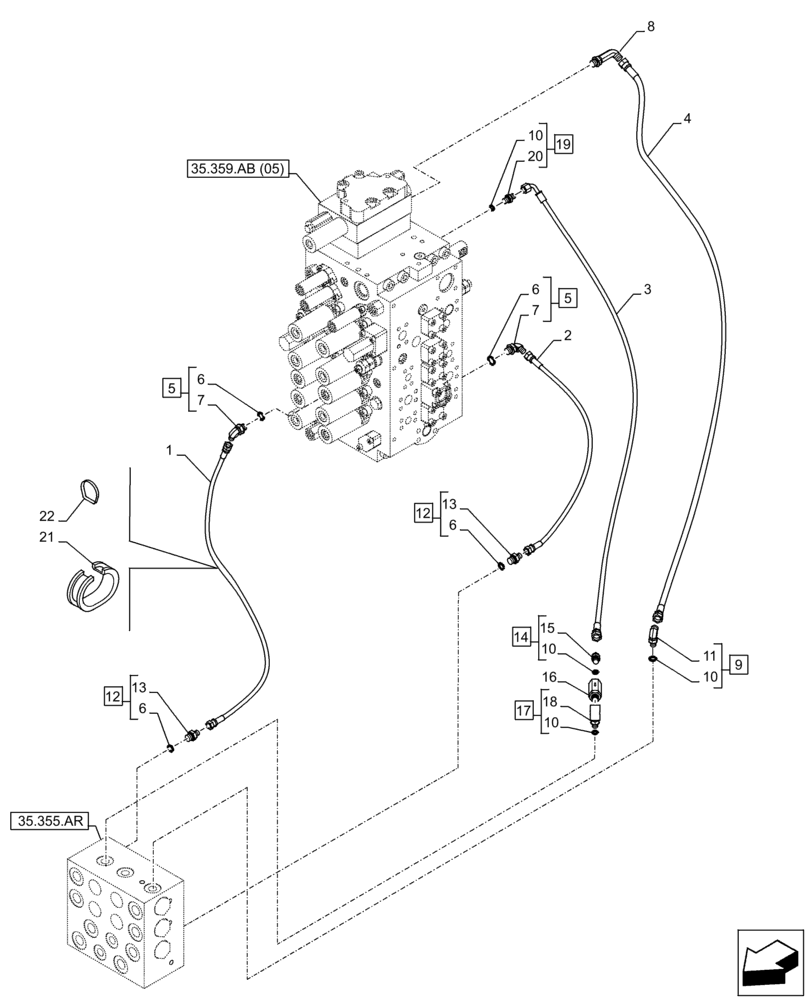

Запчасти Case CX210D LC LR (35.355.AC[07]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ2057

HOSE

6mm ID x 1450mm

1шт.

2

KHJ2055

HOSE

6mm ID x 1250mm

1шт.

3

KHJ13800

HOSE

6mm ID x 1350mm

1шт.

4

KHJ2416

HOSE

9mm ID x 1480mm

1шт.

5

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 6 (Qty 2), 7

2шт.

6

154475A1

O-RING

3шт.

7

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 5

2шт.

8

KHJ28820

ELBOW

G3/8" x G3/8"

1шт.

9

KHJ28710

ELBOW

ASSY, Incl 10 (Qty 1), 11

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

11

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 9

1шт.

12

153378A1

ADAPTER

ASSY, Incl 6 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.

16

KHJ10790

FILTER SCREEN

1шт.

17

KHJ0719

ELBOW

ASSY, Incl 10 (Qty 1), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

1шт.

19

162366A1

ADAPTER

ASSY, Incl 10 (Qty 1), 20

1шт.

20

NSS

NOT SOLD SEPARAT

Fitting, Incl in 19

1шт.

21

KRH10610

SEAL PROTECTION

290mm

1шт.

22

150498A1

MOUNTING CLIP

300mm

2шт.
