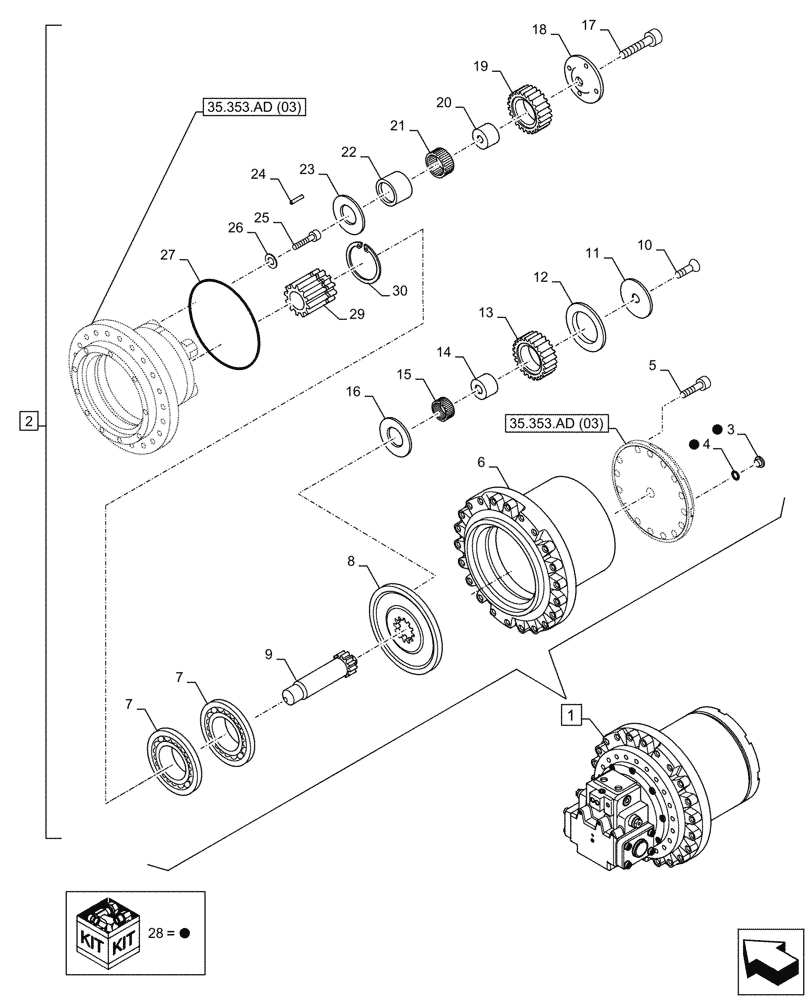

Запчасти Case CX210D LC LR (35.353.AG) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KRA16480

HYDRAULIC MOTOR

ASSY, Incl 2 - 30

1шт.

See also figure 35.353.AD (01), 35.353.AD(02), 35.353.AD (03), 35.353.AB

1шт.

2

LZ013430

REDUCER

ASSY, Incl 3 - 30

1шт.

3

165681A1

PLUG

3шт.

4

154503A1

O-RING

3шт.

5

LA016480

BOLT

16шт.

6

NSS

NOT SOLD SEPARAT

Case, Incl in 2

1шт.

7

LB015620

ROLLER

2шт.

8

LS003350

SUPPORT

1шт.

9

LC002900

GEAR

1шт.

10

LV00029

SCREW

3шт.

11

LR015050

THRUST PLATE

1шт.

12

LR00586

PLATE

3шт.

13

LC002890

IDLER PINION

3шт.

14

LB011800

BEARING

3шт.

15

LB011810

NEEDLE BEARING

3шт.

16

LR00585

PLATE

3шт.

17

LA00704

BOLT

4шт.

18

LR015040

THRUST PLATE

4шт.

19

LC00163

SUN GEAR

4шт.

20

LB00549

RING RACE

4шт.

21

LB011790

NEEDLE BEARING

4шт.

22

LS003340

SUPPORT

1шт.

23

LR00583

PLATE

4шт.

24

160104A1

PIN

4шт.

25

LA00703

BOLT

8шт.

26

LA00702

WASHER

8шт.

27

LE019010

GASKET

2шт.

28

LZ010600

REPAIR KIT

1шт.

See also Figure 35.353.AD (03)

1шт.

29

LC002880

SUN GEAR

1шт.

30

LA00705

RING, SNAP

1шт.
