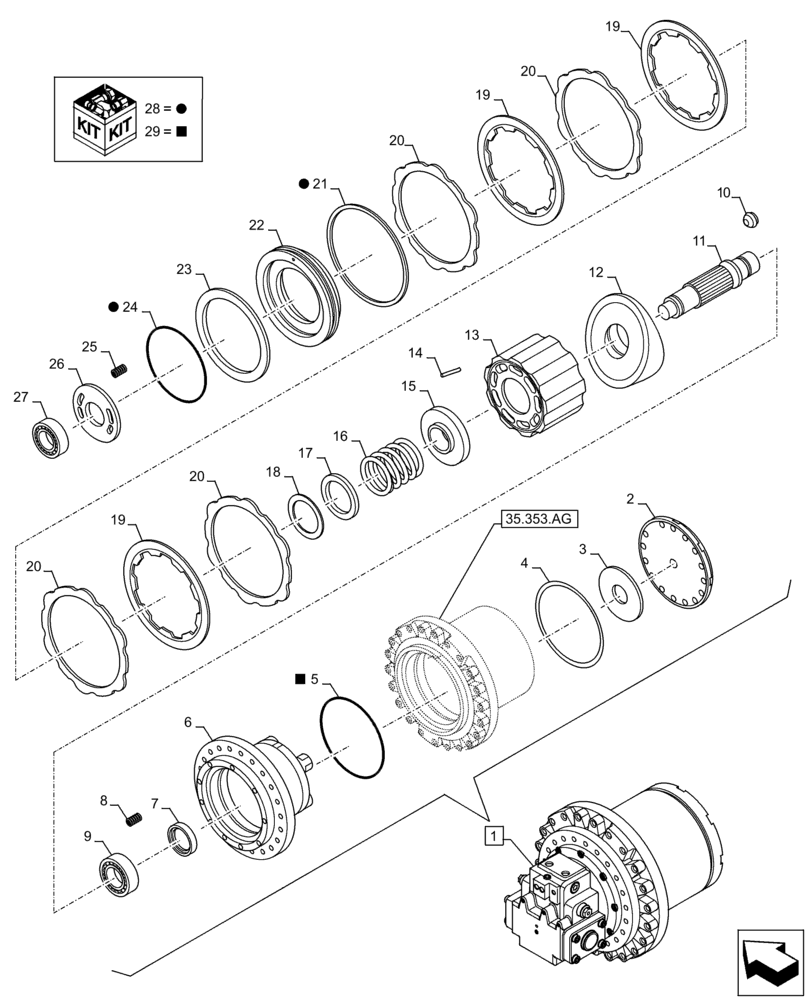

Запчасти Case CX210D LC LR (35.353.AD[03]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KRA16480

HYDRAULIC MOTOR

ASSY, Incl 2 - 29

1шт.

See also figure 35.353.AD(01), 35.353.AD(02), 35.353.AG, 35.353.AB

1шт.

2

LW007290

COVER

1шт.

3

LR00588

DISC

1шт.

4

LH00254

SHIM KIT

1шт.

5

LE019010

GASKET

2шт.

6

LZ013140

KIT

1шт.

7

LE014680

OIL SEAL

1шт.

8

160592A1

SPRING

2шт.

9

LB00546

BEARING,50mm ID x 90mm OD x 20mm W

1шт.

10

155950A1

BALL

2шт.

11

LB00545

SHAFT

1шт.

12

LR012550

PLATE

1шт.

13

LS003330

BARREL

1шт.

14

155631A1

COTTER PIN

3шт.

15

160203A1

SPRING SEAT

1шт.

16

160590A1

SPRING

1шт.

17

158113A1

COLLAR

1шт.

18

160103A1

RING, SNAP

3шт.

19

LR00582

PLATE

3шт.

20

165696A1

PLATE

4шт.

21

165721A1

SEALING RING

1шт.

22

LJ014600

PISTON

1шт.

23

165720A1

OIL SEAL

1шт.

24

155220A1

O-RING

1шт.

25

156090A1

SPRING

8шт.

26

LR015030

PLATE

1шт.

27

LB00547

BEARING,35mm ID x 72mm OD x 17mm W

1шт.

28

LZ011370

KIT

1шт.

See also Figure 35.353.AD (02), 35.353.AB

1шт.

29

LZ010600

REPAIR KIT

1шт.

See also Figure 35.353.AG

1шт.
