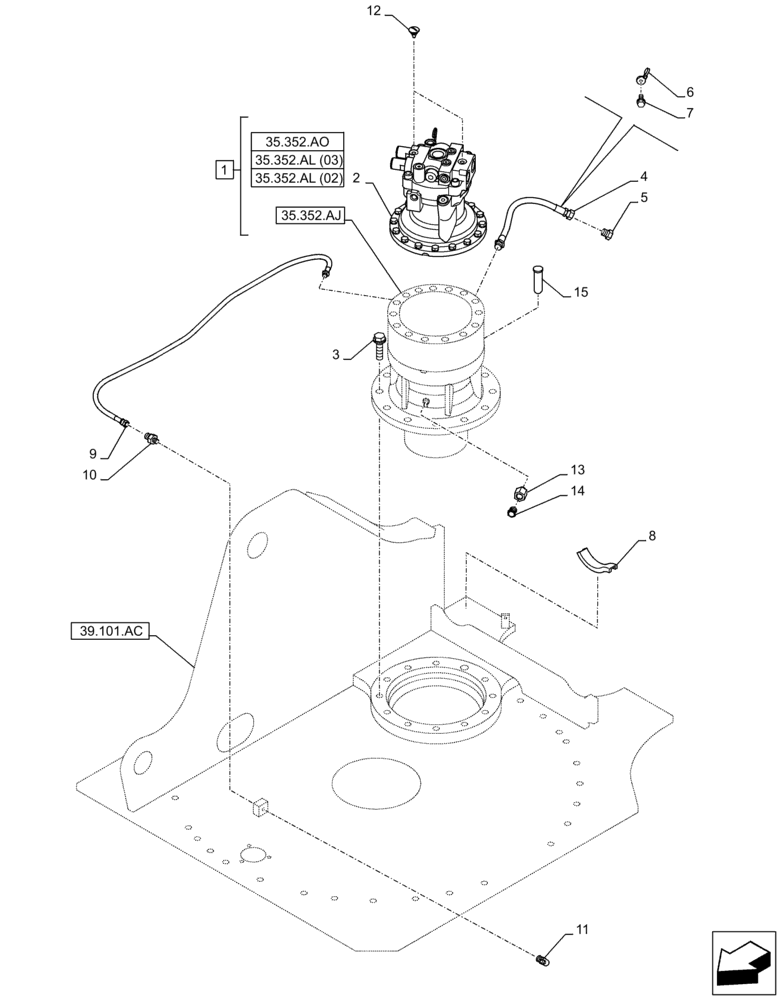

Запчасти Case CX210D LC LR (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS

1

KRC10290

MOTO-REDUCTION GEAR

ASSY, Incl 2

1шт.

See also figure 35.352.AL(02), 35.352.AL(03), 35.352.AO, 35.352.AJ

1шт.

1

KRC10290R

REMAN-MOTO REDUCTION

1шт.

1

KRC10290C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

2

LN001820

REDUCER

Motor reduction gear, Incl in 1

1шт.

2

LN001820R

REMAN-REDUCTION UNIT

1шт.

2

LN001820C

CORE-REDUCTION UNIT

Return Number

1шт.

3

166354A1

BOLT,Sems, M20 x 75mm

M20 x 75mm

11шт.

4

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

12mm ID x 470mm

1шт.

5

KHP0578

PLUG

1шт.

6

KHR2584

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KEJ0474

FLEXIBLE SHEATH

1шт.

9

KHJ14930

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

6mm ID x 1400mm

1шт.

10

KRJ4050

ADAPTER

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

12

KHV12270

SCREW,M12 x 1

2шт.

13

KRC10720

FITTING

1шт.

14

KRC10710

VALVE

1шт.

15

KRC11720

PIN

1шт.
