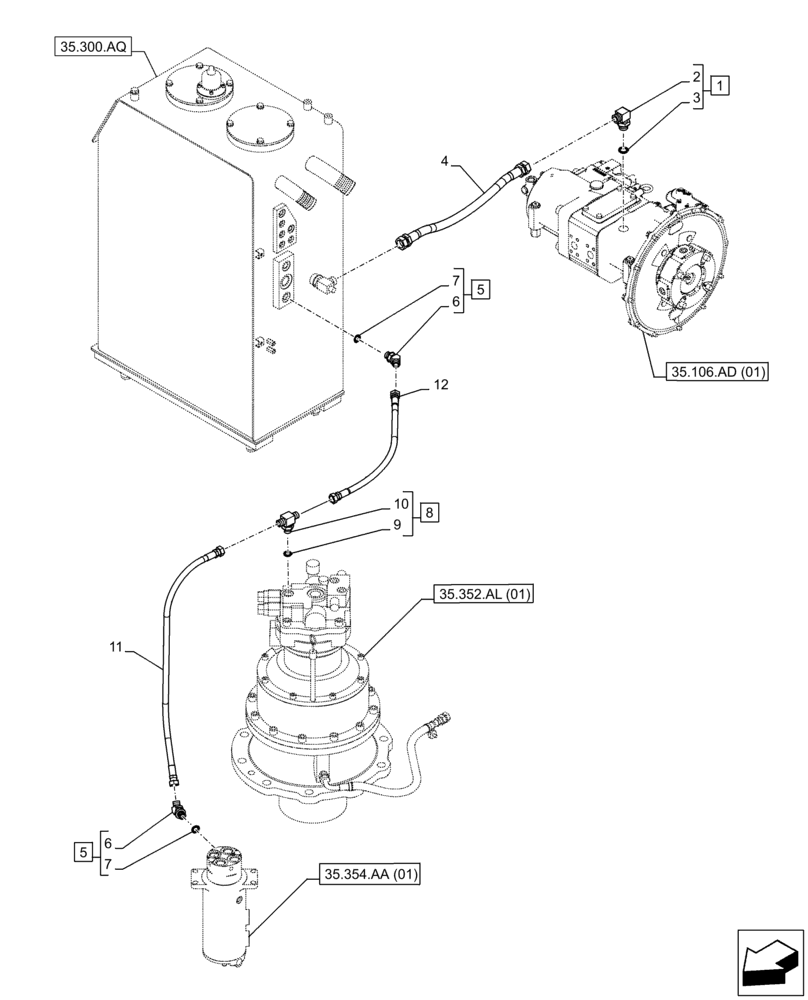

Запчасти Case CX210D LC LR (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

G3/4" x G3/4", ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 1

1шт.

3

154503A1

O-RING

1шт.

4

KBJ19120

HYDRAULIC HOSE

640mm

1шт.

5

157585A1

ELBOW

G1/2" x G1/2", ASSY, Incl 6 - 7

2шт.

6

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 5

2шт.

7

154487A1

O-RING

2шт.

8

KHJ1157

TEE

ASSY, Incl 9 - 10

1шт.

9

154475A1

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 8

1шт.

11

KNJ2826

HYDRAULIC HOSE

880mm

1шт.

12

KHJ30290

HYDRAULIC HOSE

520mm

1шт.
