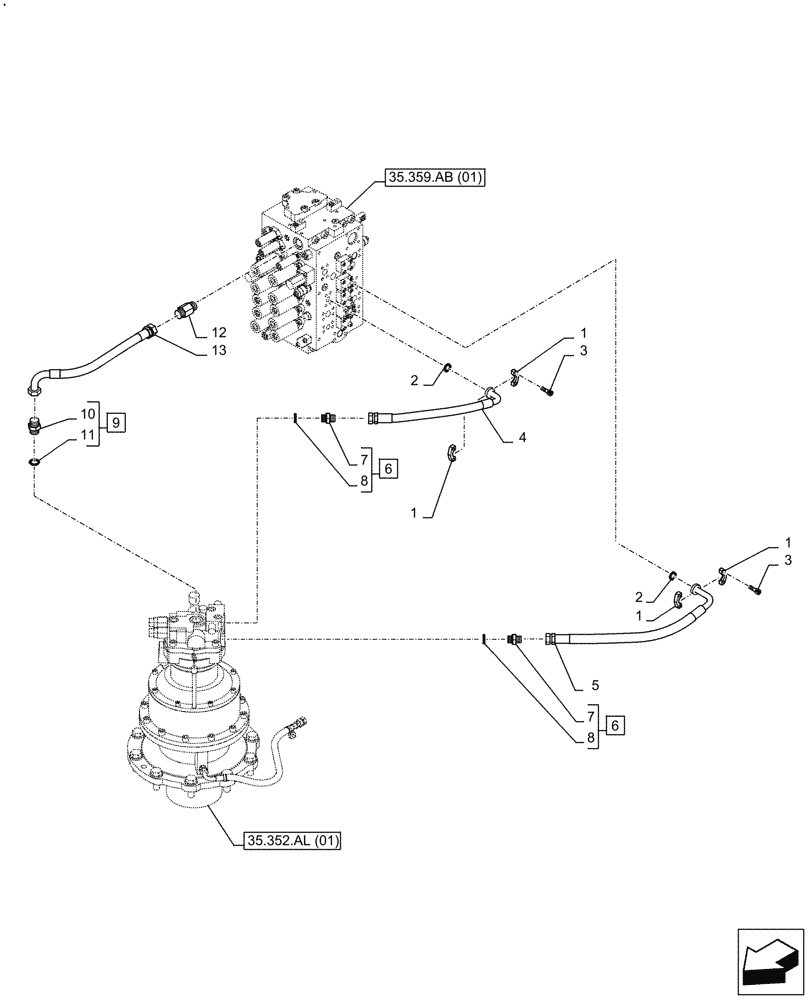

Запчасти Case CX210D LC LR (35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

153458A1

FLANGE

4шт.

2

155210A1

O-RING

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

4

KRJ26720

HYDRAULIC HOSE

19 x 570mm

1шт.

5

KRJ35160

HYDRAULIC HOSE

19 x 770mm

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4", Incl 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

8

154503A1

O-RING

2шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY,G1" x G1", Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

154523A1

O-RING

1шт.

12

KMJ0187

ADAPTER

1шт.

13

KSJ2723

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

25 x 530mm

1шт.
