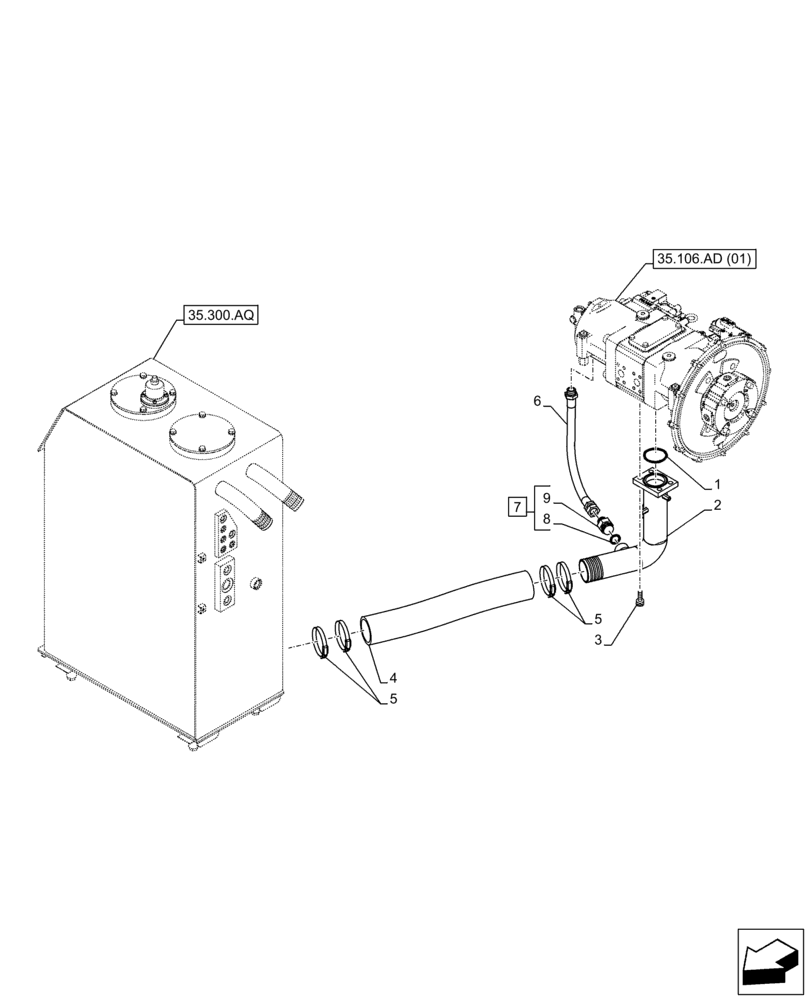

Запчасти Case CX210D LC LR (35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS

1

154681A1

O-RING

1шт.

2

KBJ19260

PIPE

1шт.

3

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

4

159821A1

HYDRAULIC HOSE,76.20 mm ID x 590.00 mm

, Serial Range: -C0476

1шт.

4

KHJ29830

HOSE

570mm, Start Serial: D0476

1шт.

5

150905A1

CLAMP

, Serial Range: -C0476

4шт.

5

KHJ32620

CLIP

, Start Serial: D0476

4шт.

6

KBJ15710

HYDRAULIC HOSE

19mm ID x 510mm

1шт.

7

169040A1

ADAPTER

ASSY, Incl 8, 9

1шт.

8

154523A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.
