(90.160.BY[03]) - STD + VAR - 488035 - CONSOLE, SIDE PANEL, SEAT, AIR SUSPENSION, HEATED, LH

Запчасти Case CX210D LC (90.160.BY[03]) - STD + VAR - 488035 - CONSOLE, SIDE PANEL, SEAT, AIR SUSPENSION, HEATED, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

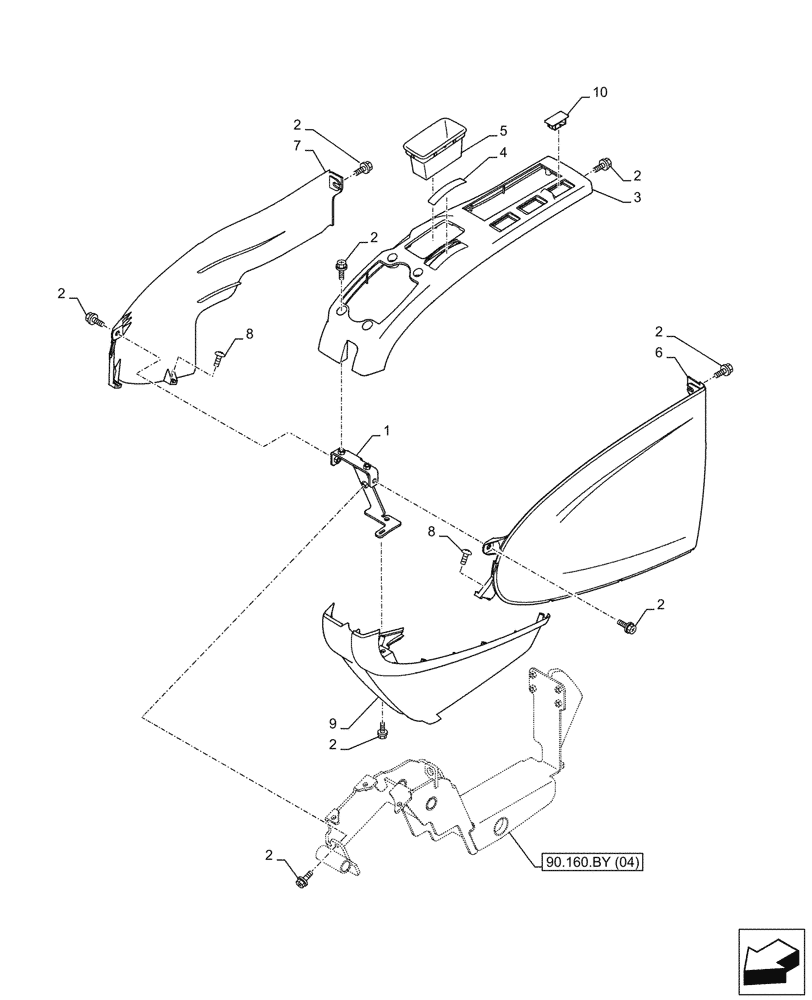

Схема запчастей Case CX210D LC - (90.160.BY[03]) - STD + VAR - 488035 - CONSOLE, SIDE PANEL, SEAT, AIR SUSPENSION, HEATED, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.by (04)
9
10
3
4
2
2
2
8
8
6
2
2
2
1
7
2
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN24130

BRACKET, SUPPORTING

1шт.

2

KHN2132

BOLT,Hex Flg Hd, M6 x 16

9шт.

3

KHN23150

COVER

1шт.

4

KHN16770

DECAL

1шт.

5

KHN23770

CASE

1шт.

6

KHN12340

COVER

1шт.

7

KHN23190

COVER

1шт.

8

KHR2737

SELF-TAP SCREW

6шт.

9

KHN26450

COVER

1шт.

10

KHR10390

CAP

1шт.
