(90.124.AJ) - STD + VAR - 488035 - SEAT, AIR SUSPENSION, BASE PLATE, HEATED

Запчасти Case CX210D LC (90.124.AJ) - STD + VAR - 488035 - SEAT, AIR SUSPENSION, BASE PLATE, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

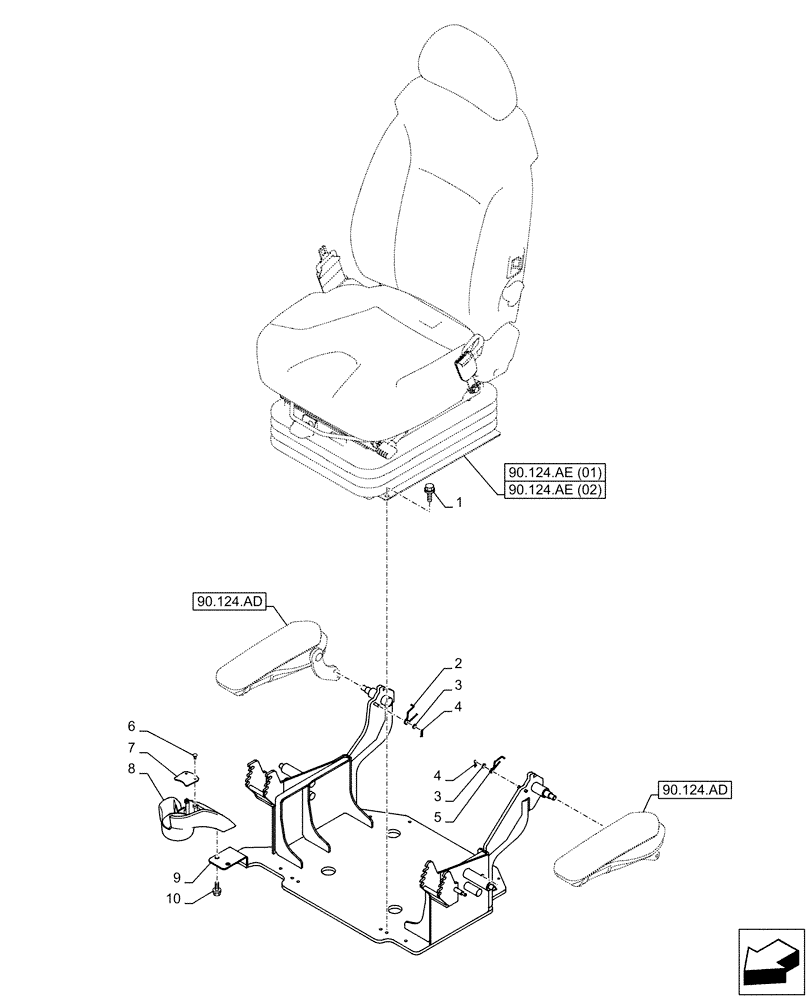

Схема запчастей Case CX210D LC - (90.124.AJ) - STD + VAR - 488035 - SEAT, AIR SUSPENSION, BASE PLATE, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ae (02)
4
5
6
1
7
2
3
4
8
3
9
10
90.124.ad
90.124.ad
90.124.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166350A1

BOLT

4шт.

2

KHN40040

TORSION SPRING

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

165192A1

COTTER PIN

2шт.

5

KHN40050

TORSION SPRING

1шт.

6

KHN2470

CLIP

2шт.

7

KHN14760

PLATE

1шт.

8

KHN23220

HOLDER

1шт.

9

KHN39690

BASE PLATE

1шт.

10

KHN13540

BOLT,Spcl

2шт.
