(90.124.AF[02]) - VAR - 488035 - SEAT BACK

Запчасти Case CX210D LC (90.124.AF[02]) - VAR - 488035 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS

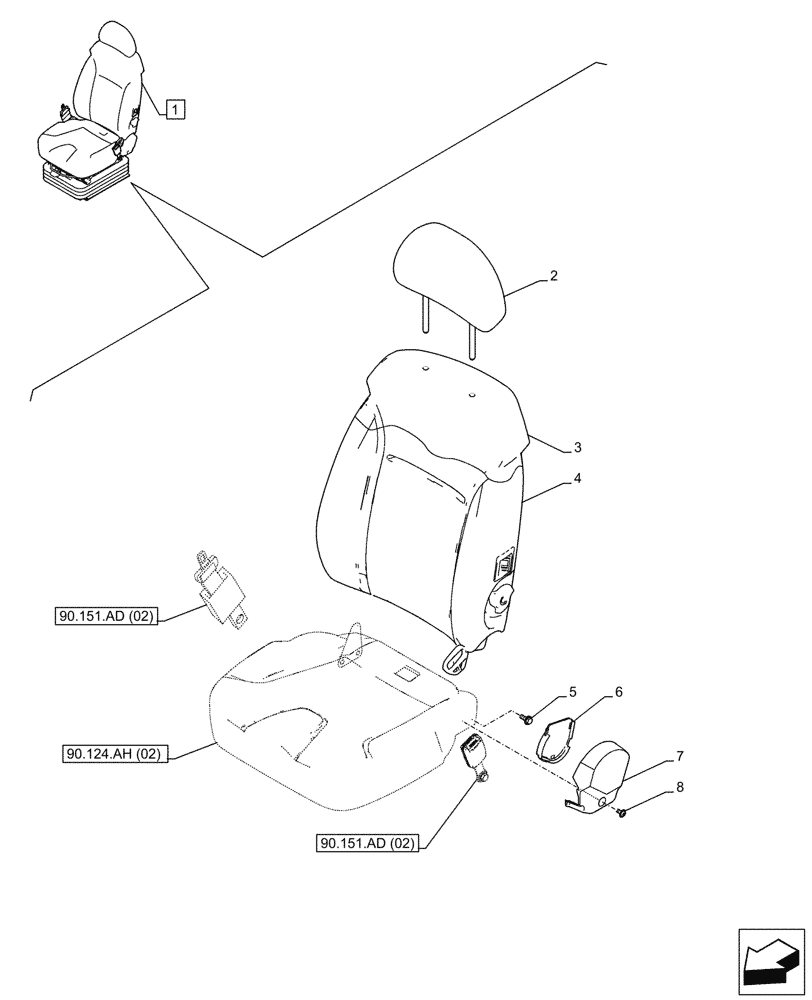

Схема запчастей Case CX210D LC - (90.124.AF[02]) - VAR - 488035 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ah (02)
3
2
7
4
8
6
5
1
90.151.ad (02)
90.151.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42800

DRIVER SEAT

ASSY, Incl 2 - 8, Serial Range: -C0525

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2 - 8, Start Serial: D0525

1шт.

2

KHN40280

SEAT HEADREST

, Serial Range: -C0525

1шт.

2

KHN40281

SEAT HEADREST

, Start Serial: D0525

1шт.

3

KHN17680

COVER

1шт.

4

KHN40620

SEAT CUSHION

, Serial Range: -C0525

1шт.

4

KHN40621

SEAT CUSHION

, Start Serial: D0525

1шт.

5

KHN40240

BOLT

4шт.

6

KHN40250

HINGE

1шт.

7

KHN40270

HINGE

1шт.

8

KHN40260

SCREW

2шт.
