(90.105.CF) - STD + VAR - 488031, 481027 - HOOD, FUEL TRANSFER PUMP

Запчасти Case CX210D LC (90.105.CF) - STD + VAR - 488031, 481027 - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS

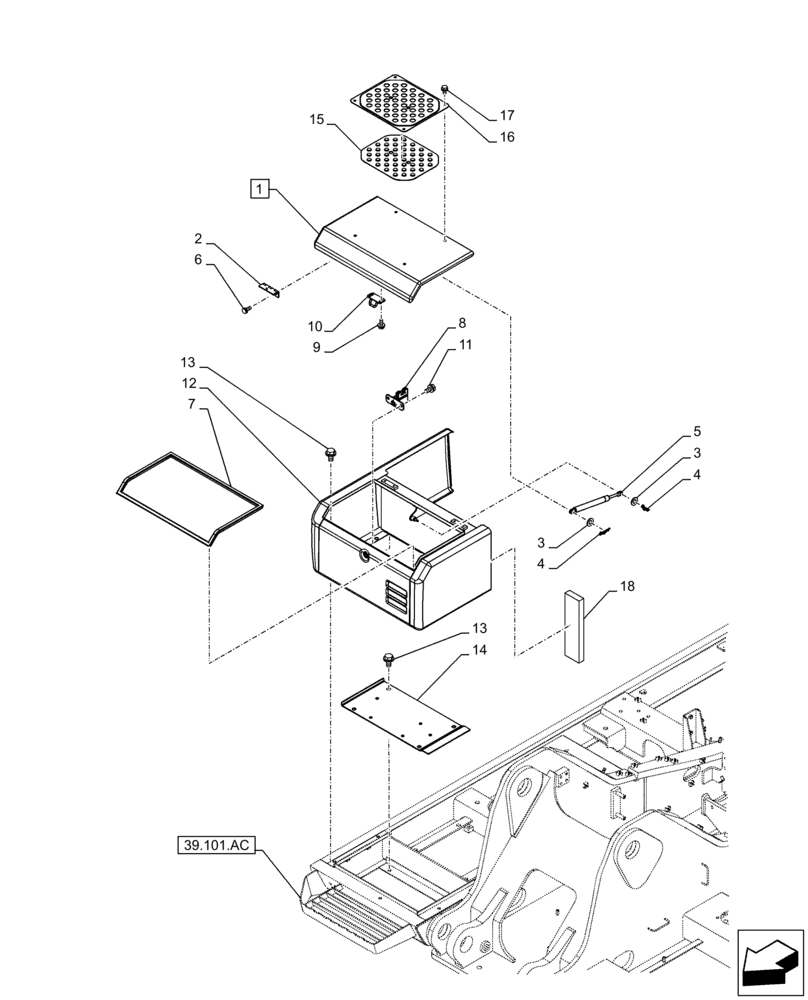

Схема запчастей Case CX210D LC - (90.105.CF) - STD + VAR - 488031, 481027 - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
2
3
18
3
13
14
15
1
17
9
10
13
8
39.101.ac
4
6
4
16
7
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN36740G1

COVER

ASSY, Incl 2

1шт.

2

KHN17220

HINGE

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

153077A1

COTTER PIN

2шт.

5

KHN38920

DAMPER

1шт.

6

KAN2771

BOLT,Spcl

4шт.

7

KHN36780

TRIM

1шт.

8

KHN35780

LOCK

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

2шт.

10

KHN12740

SUPPORT

1шт.

11

166350A1

BOLT

M8 x 20mm

2шт.

12

KHN36750G1

COVER

1шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

14

KBN17130G1

COVER

1шт.

15

KHN10940

RUBBER PAD

1шт.

16

KHN13510B1

COVER

1шт.

17

KHN13540

BOLT,Spcl

4шт.

18

KRN29610

SEAL

1шт.
