(90.105.BV[13]) - VAR - 461558 - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX210D LC (90.105.BV[13]) - VAR - 461558 - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

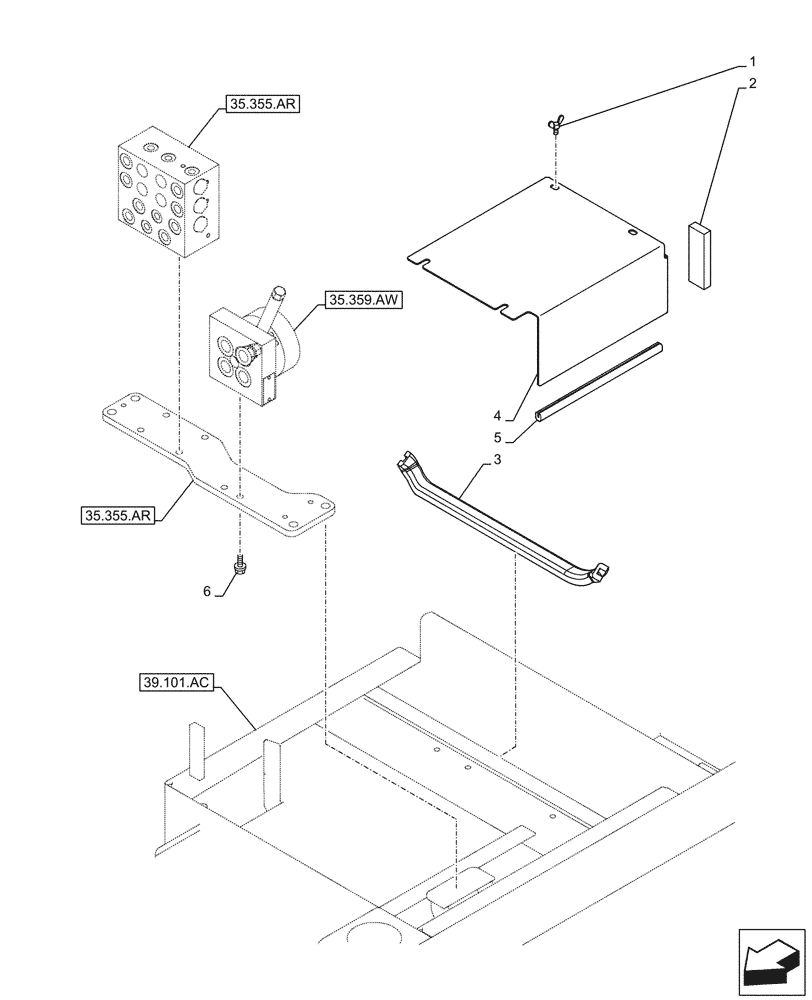

Схема запчастей Case CX210D LC - (90.105.BV[13]) - VAR - 461558 - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
35.359.aw
4
1
3
6
5
2
35.355.ar
39.101.ac
35.355.ar
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN17030

SPECIAL BOLT

M8 x 12mm

4шт.

2

KBJ19340

SEAL

1шт.

3

KHJ25680

GASKET

415mm

2шт.

4

KBJ22190

COVER

1шт.

5

AWJ10170

SEAL PROTECTION

280mm

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

2шт.
