(90.105.BV[10]) - STD + VAR - 488031, 481027 - TOP COVER PLATE

Запчасти Case CX210D LC (90.105.BV[10]) - STD + VAR - 488031, 481027 - TOP COVER PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

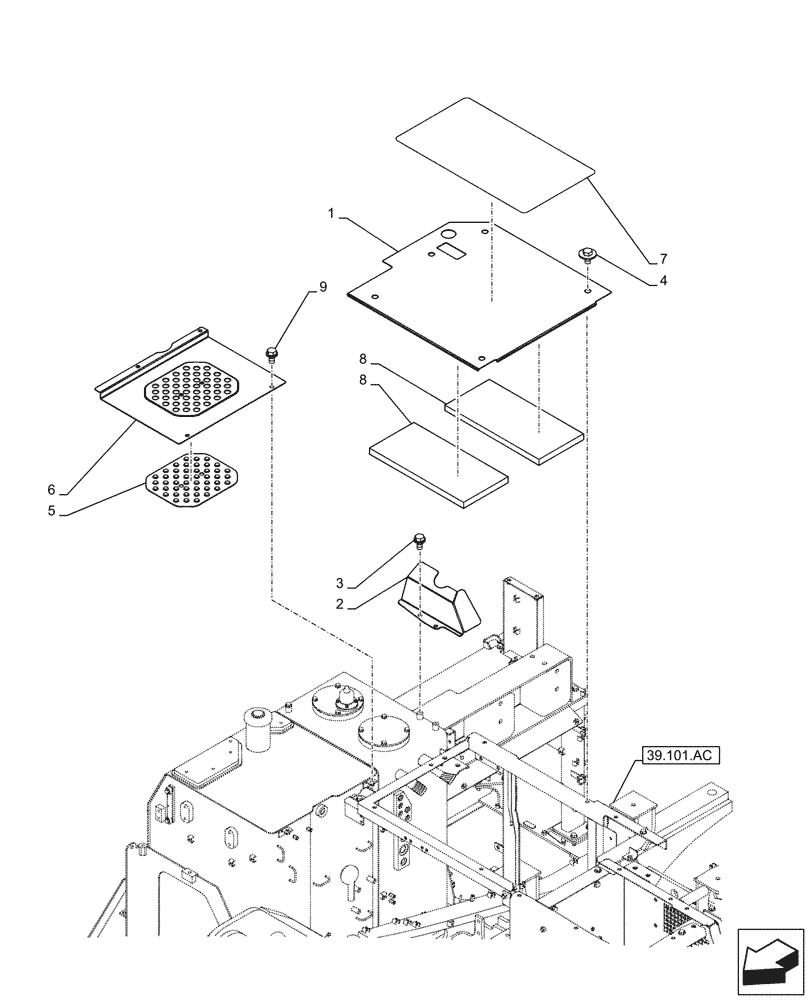

Схема запчастей Case CX210D LC - (90.105.BV[10]) - STD + VAR - 488031, 481027 - TOP COVER PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
9
2
3
6
7
5
1
4
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19620

COVER

1шт.

2

KBN20000

COVER

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

4

KHN12020

BOLT,Spcl

M12 x 25mm

6шт.

5

KHN10940

RUBBER PAD

1шт.

6

KBN19541

COVER

, Serial Range: -C0468

1шт.

6

KBN19542

COVER

, Start Serial: D0468

1шт.

7

KHP27350

ANTI-SKID STRIP

380mm x 680mm

1шт.

8

KBN16750

INSULATION

2шт.

9

105R012Y025R

BOLT

M12 x 25mm

4шт.
