(90.105.BV[08]) - STD + VAR - 488031, 481027 - HOUSING & COVERS

Запчасти Case CX210D LC (90.105.BV[08]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

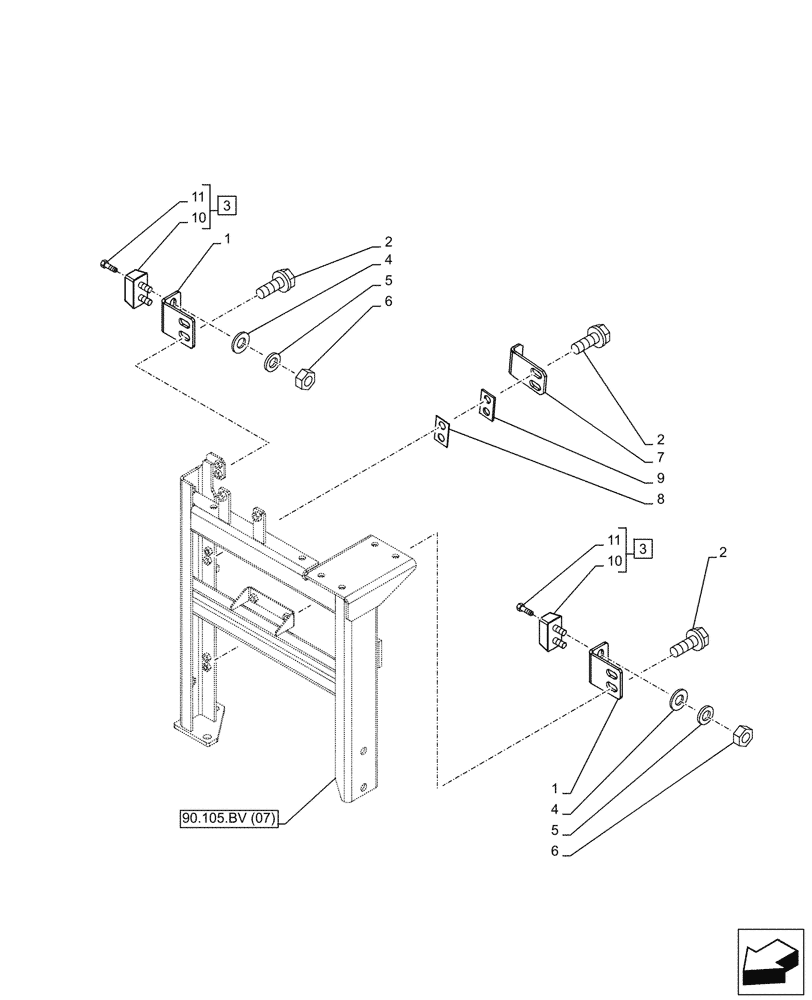

Схема запчастей Case CX210D LC - (90.105.BV[08]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.bv (07)
2
3
3
1
8
9
2
5
4
6
11
10
11
6
4
10
5
2
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN12660

SUPPORT

2шт.

2

166347A1

BOLT,Sems, M10 x 30mm

6шт.

3

KRN2098

STOP

ASSY, Incl 10, 11

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

7

KHN41790

BRACKET

RH

1шт.

8

158749A1

SHIM

1шт.

9

152719A1

SHIM

1шт.

10

NSS

NOT SOLD SEPARAT

Stopper, Incl in 3

2шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 11
