(90.105.BV[07]) - STD + VAR - 488031, 481027 - HOUSING & COVERS

Запчасти Case CX210D LC (90.105.BV[07]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

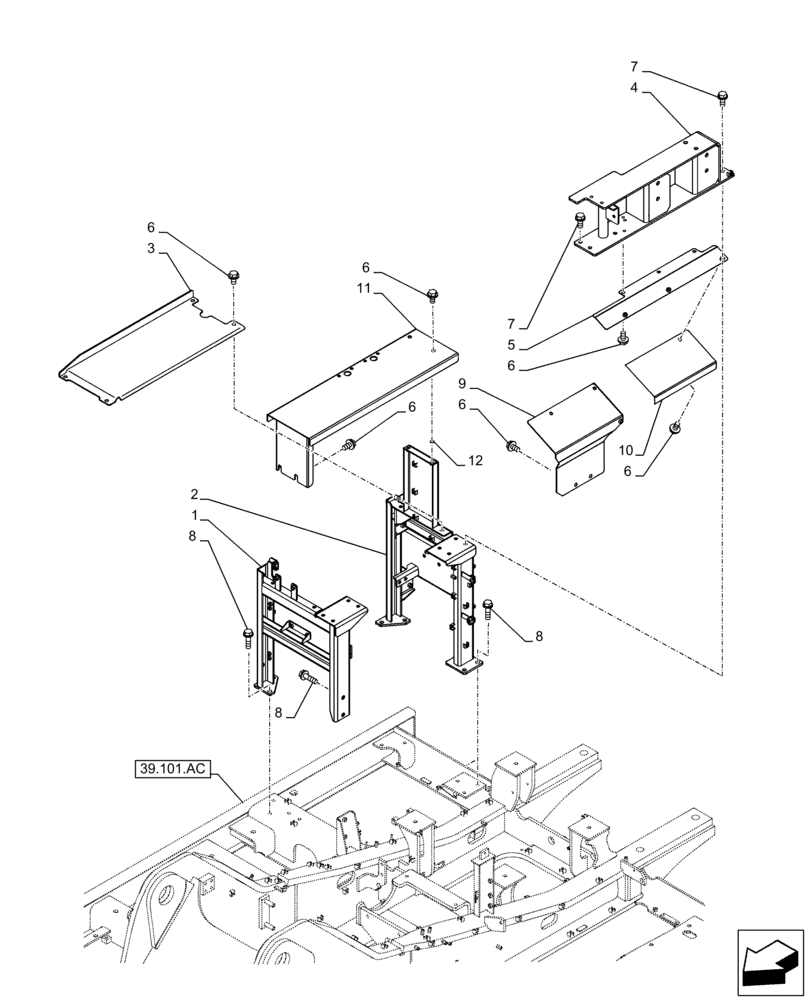

Схема запчастей Case CX210D LC - (90.105.BV[07]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
39.101.ac
6
8
4
8
9
2
7
12
10
3
11
8
6
6
6
7
1
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19702

FRAME

1шт.

2

KRN27941

FRAME

1шт.

3

KBN19730

COVER

1шт.

4

KBN19720

FRAME

1шт.

5

KBN19740

COVER

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

17шт.

7

166352A1

BOLT

8шт.

8

105R012Y045R

BOLT

M12 x 45mm

9шт.

9

KBN19860

COVER

1шт.

10

KBN19870

COVER

1шт.

11

KBN19881

FRAME

, Serial Range: -C0467

1шт.

11

KBN19882

FRAME

, Start Serial: D0467

1шт.

12

KHN35020

WASHER

M6

1шт.

(Q.ty 7) for PN KBN19881; (Q.ty 9) for PN KBN19882

1шт.
