(90.105.BV[06]) - STD + VAR - 488031, 481027 - HOUSING & COVERS, INSULATION

Запчасти Case CX210D LC (90.105.BV[06]) - STD + VAR - 488031, 481027 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

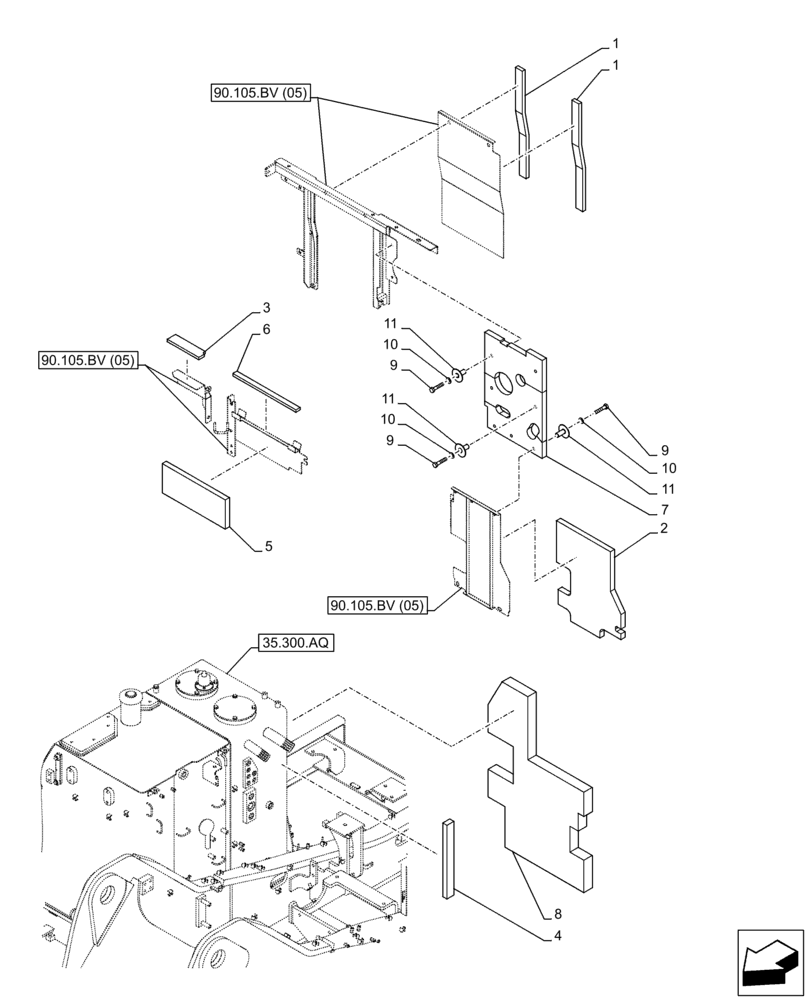

Схема запчастей Case CX210D LC - (90.105.BV[06]) - STD + VAR - 488031, 481027 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
10
90.105.bv (05)
1
10
4
10
9
11
7
1
9
11
9
90.105.bv (05)
90.105.bv (05)
8
11
2
35.300.aq
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN16520

INSULATION

2шт.

2

KBN19830

SEAL

1шт.

3

KBN20060

SEAL

1шт.

4

KSN14740

SEAL PROTECTION

1шт.

5

KBN19810

SEAL

1шт.

6

KBN16410

SEAL

1шт.

7

KBN19930

SEAL

1шт.

8

KBN19500

INSULATION

1шт.

9

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

7шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

11

KHH0358

RETAINER

7шт.
