(90.105.BV[05]) - STD + VAR - 488031, 481027 - HOUSING & COVERS

Запчасти Case CX210D LC (90.105.BV[05]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

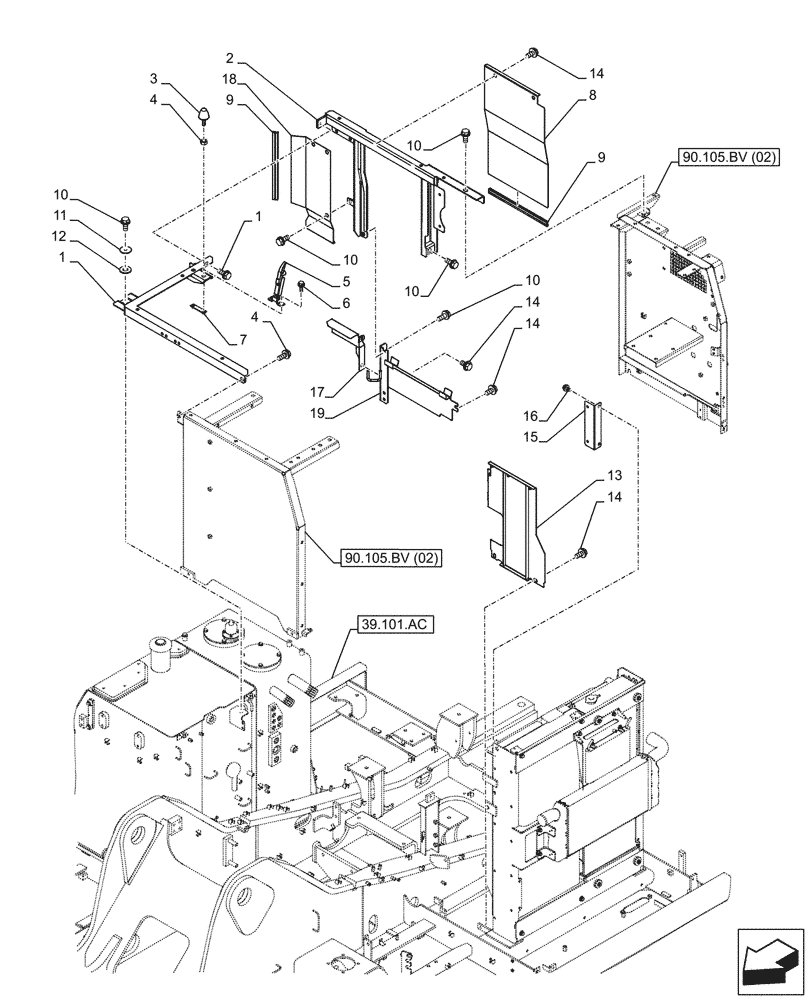

Схема запчастей Case CX210D LC - (90.105.BV[05]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.bv (02)
10
10
13
10
16
10
18
11
2
9
6
1
3
14
12
1
5
7
17
10
19
15
14
14
14
4
8
9
4
39.101.ac
90.105.bv (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19691

FRAME

, Serial Range: -C0464

1шт.

1

KBN19692

, Start Serial: D0464

1шт.

2

KBN20010

FRAME

1шт.

3

151108A1

STOP

1шт.

4

KBH0446

NUT

M10 x 1.25

1шт.

5

152423A1

LATCH

1шт.

6

167182A1

BOLT,Sems, M8 x 25mm

2шт.

7

KHN24200

PLATE

1шт.

8

KBN16510

COVER

1шт.

9

HKH0048

SEAL

425mm

2шт.

10

166352A1

BOLT

M12 x 30mm

9шт.

11

KHN39790

WASHER

1шт.

12

KHN39780

WASHER

1шт.

13

KBN19820

COVER

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

11шт.

15

KBN20050

BRACKET

1шт.

16

166345A1

BOLT

2шт.

17

KBN19840

COVER

1шт.

18

KBN19530

COVER

1шт.

19

KBN19520

COVER

1шт.
