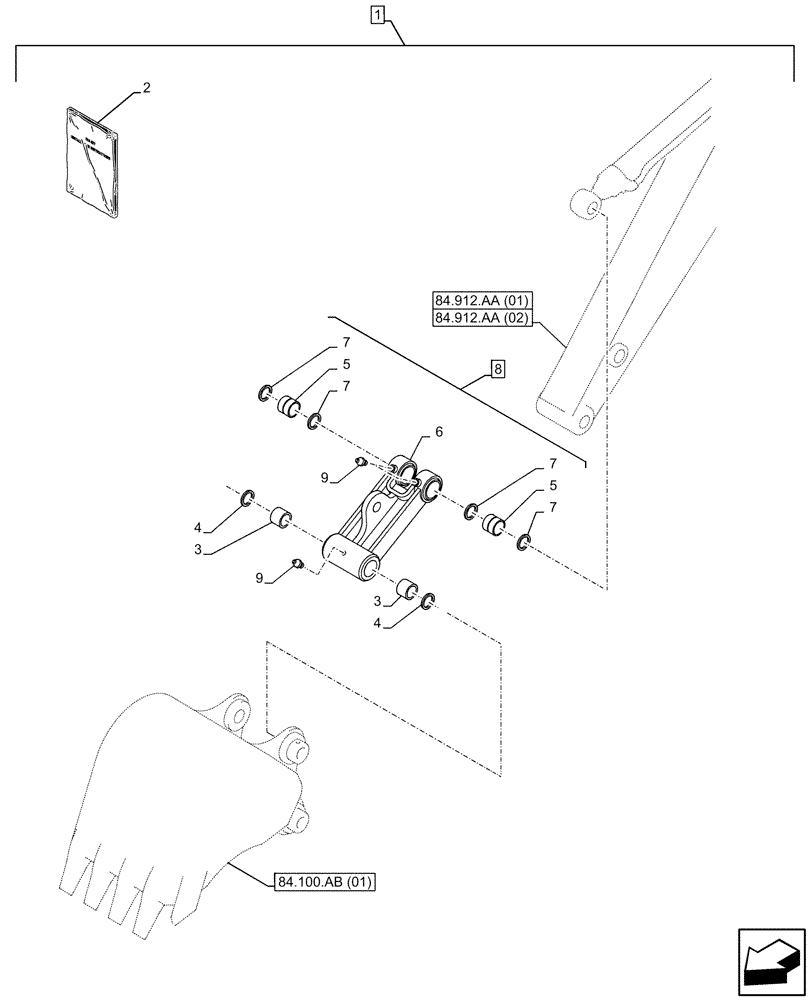

Запчасти Case CX210D LC (88.100.84[01]) - DIA KIT, BUCKET, LINK, W/ HOOK (88) - ACCESSORIES

1

KG2RP322-00

CONSTRUCTION DIA

Bucket Linkage w/ Hook, Incl 2 - 9

1шт.

2

47880421

INSTRUCTION

1шт.

2

47880458

INSTRUCTION

1шт.

3

KRV20280

BUSHING

2шт.

4

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

5

KRV2395

SELF LUB RING

2шт.

6

NSS

NOT SOLD SEPARAT

Bucket Link w/ Hook, Incl in 8

1шт.

7

160401A1

SEAL,85mm ID x 100mm OD x 5mm Thk

4шт.

8

KRV20780

POWER ARM

ASSY, Incl 3 - 7

1шт.

9

153630A1

LUBE NIPPLE

3шт.
