(88.100.55[11]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX210D LC (88.100.55[11]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

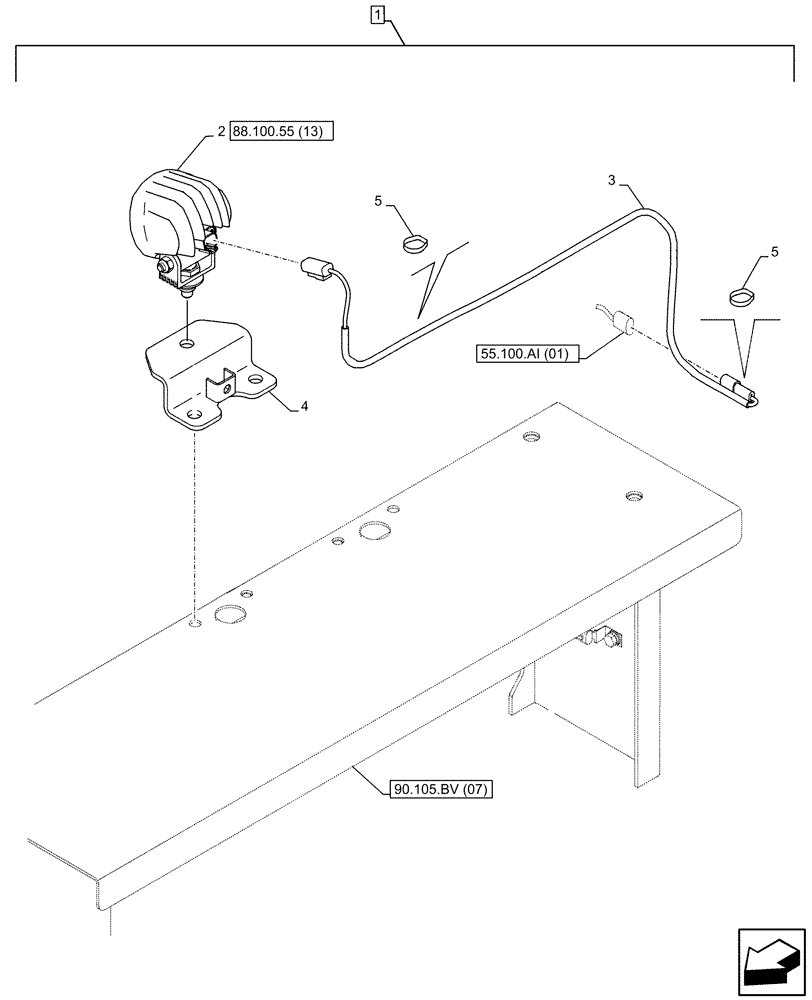

Схема запчастей Case CX210D LC - (88.100.55[11]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
5
5
3
4
2
90.105.bv (07)
88.100.55 (13)
1
55.100.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0RR873-00

CONSTRUCTION DIA

Right, Left, Rear View Camera, Light, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR37950

WORK LAMP

Led 24V 13W, ASSY

1шт.

3

KHR41840

WIRE HARNESS

1шт.

4

KHR41830

BRACKET

1шт.

5

150496A1

MOUNTING CLIP

250mm

3шт.
