(88.100.35[239]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE

Запчасти Case CX210D LC (88.100.35[239]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE (88) - ACCESSORIES

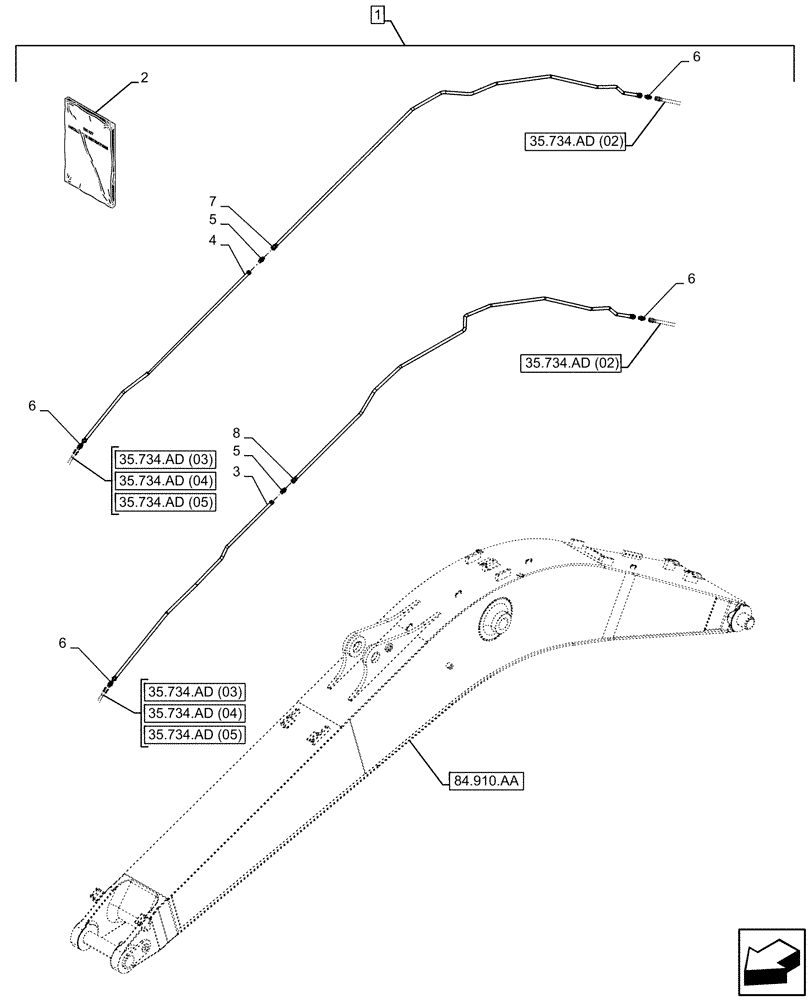

Схема запчастей Case CX210D LC - (88.100.35[239]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE (88) - ACCESSORIES
35.734.ad (05)
35.734.ad (02)
35.734.ad (02)
6
35.734.ad (04)
8
3
6
2
35.734.ad (05)
35.734.ad (04)
84.910.aa
6
35.734.ad (03)
5
4
6
1
35.734.ad (03)
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP367-00

CONSTRUCTION DIA

Quick Coupler Line, Boom, Second Option, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928783

INSTRUCTION

1шт.

2

47929333

INSTRUCTION

1шт.

3

KRV45980

PIPE

LH

1шт.

4

KRV45990

PIPE

RH

1шт.

5

163029A1

UNION

2шт.

6

163065A1

UNION

4шт.

7

KRV44270

PIPE

RH

1шт.

8

KRV44260

PIPE

LH

1шт.
