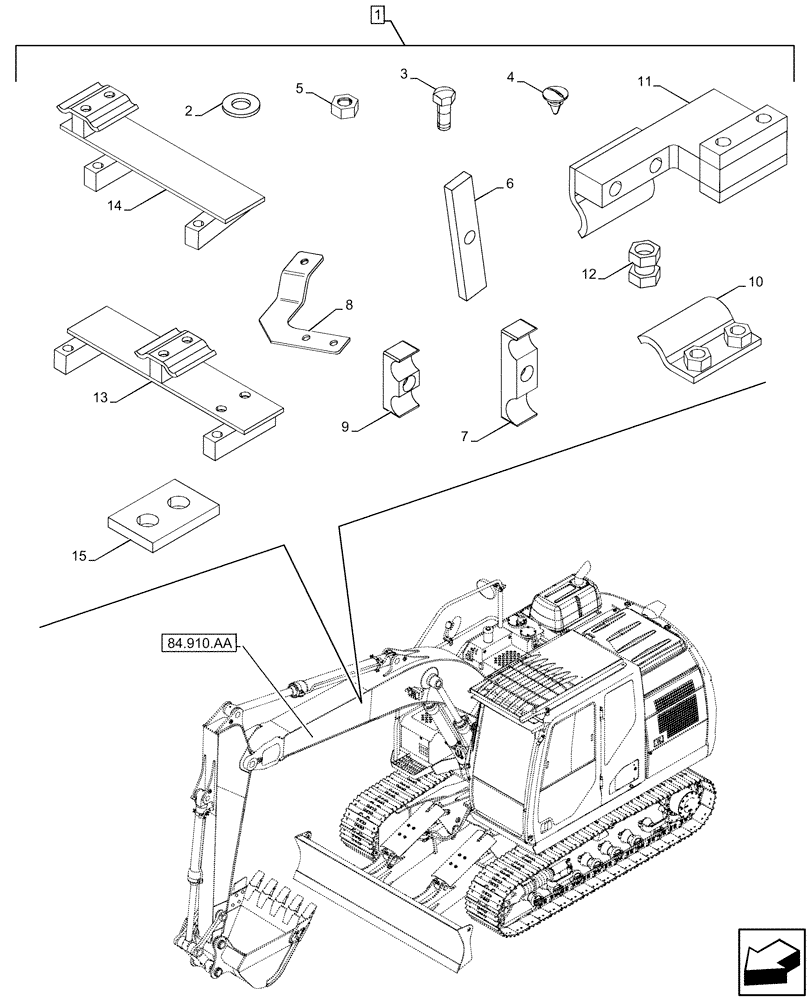

Запчасти Case CX210D LC (88.100.35[236]) - DIA KIT, QUICK COUPLER, BOOM, HBCV, CLAMP (88) - ACCESSORIES

1

KG2RP365-00

CONSTRUCTION DIA

Quick Coupler Line, Boom, HBCV, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

153081A1

WASHER

M8

5шт.

3

167182A1

BOLT,Sems, M8 x 25mm

9шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

3

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

5шт.

3

166352A1

BOLT

M12 x 30

1шт.

4

KHV12270

SCREW,M12 x 1

6шт.

5

829-1308

NUT,M8, Cl 10

2шт.

6

KRV46000

BAR

Stopper

1шт.

7

KRV46010

CLAMP

1шт.

8

KHV13670

BAR

Boom Center

2шт.

9

KHV13660

CLAMP

10шт.

10

KHV11640

PIPE CLAMP

1шт.

11

KBV40860

BAR

Boom Foot

1шт.

11

KBV38650

BAR

Boom Top

2шт.

12

158842A1

PLUG

G1/4"

2шт.

13

KBV38630

BAR

Boom Center

2шт.

14

KBV38590

BAR

Boom Foot

1шт.

15

KBV39430

BAR

Boom Foot

1шт.
