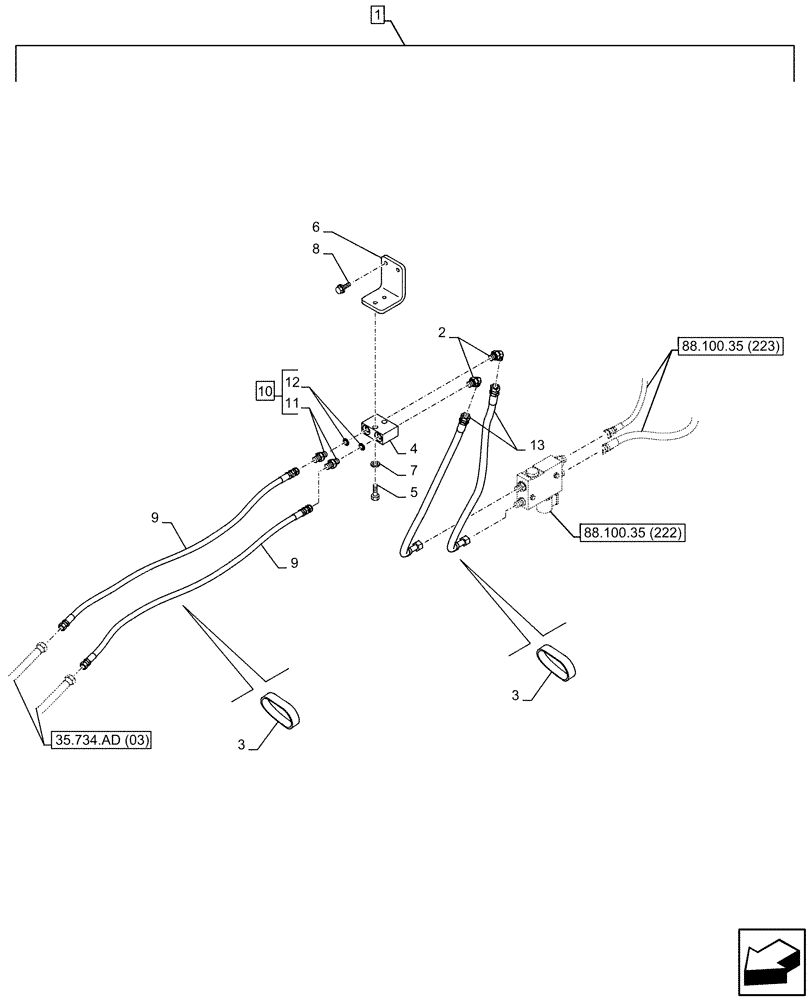

Запчасти Case CX210D LC (88.100.35[226]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (88) - ACCESSORIES

1

KG2RP270-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.

3

150071A1

MOUNTING CLIP

380mm

4шт.

4

KRJ37190

MANIFOLD

1шт.

5

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

M10 x 45mm

2шт.

6

KRJ37200

BRACKET

1шт.

7

150409A1

WASHER

M10

2шт.

8

166052A1

BOLT

M10 x 25mm

2шт.

9

KHJ33340

HOSE

6mm ID x 950mm

2шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

KHJ34020

HOSE

6mm ID x 550mm

2шт.
