(88.100.35[224]) - DIA KIT, QUICK COUPLER, HORN

Запчасти Case CX210D LC (88.100.35[224]) - DIA KIT, QUICK COUPLER, HORN (88) - ACCESSORIES

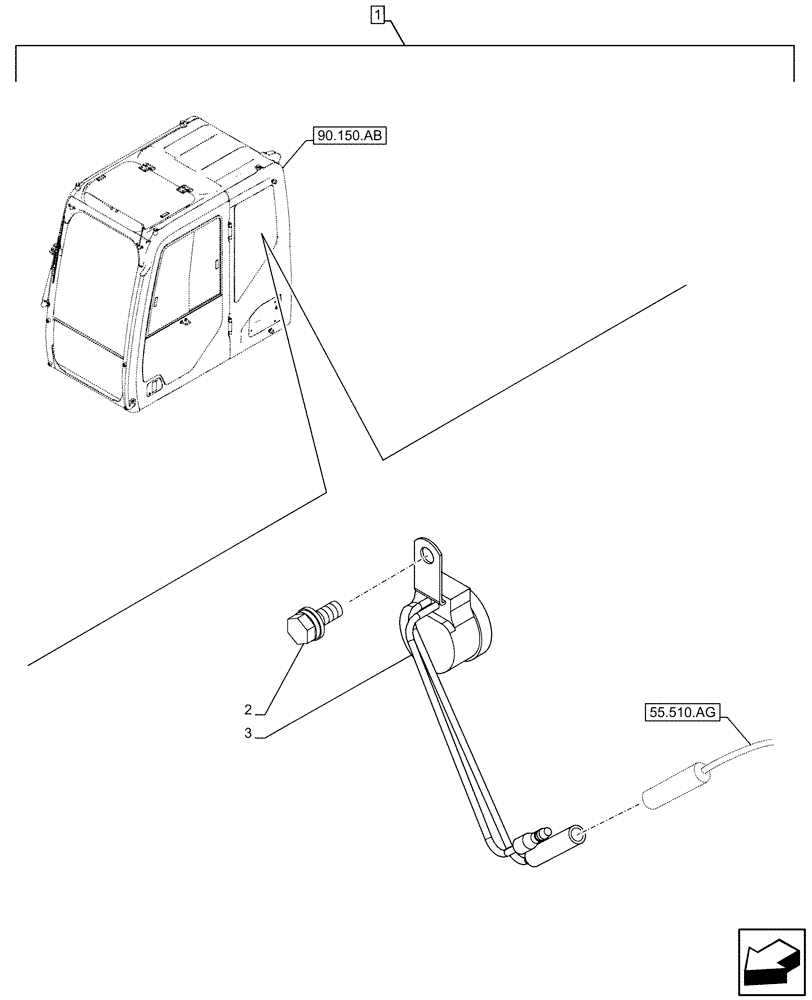

Схема запчастей Case CX210D LC - (88.100.35[224]) - DIA KIT, QUICK COUPLER, HORN (88) - ACCESSORIES
90.150.ab
3
55.510.ag
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP270-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

3

168630A1

HORN

1шт.

Выбрано товаров: 4
